Sayville FD

Sayville, NY


SPECS:

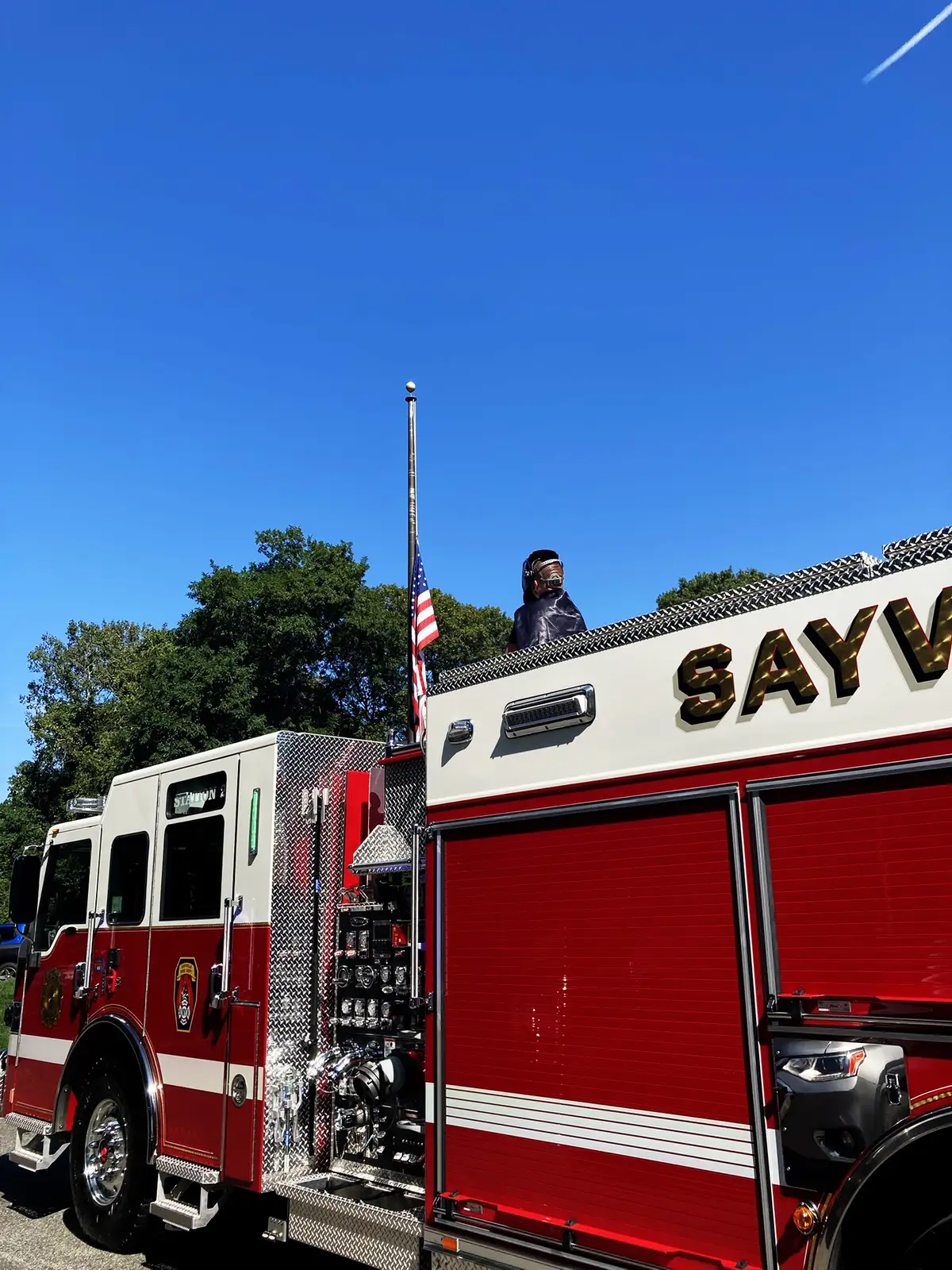

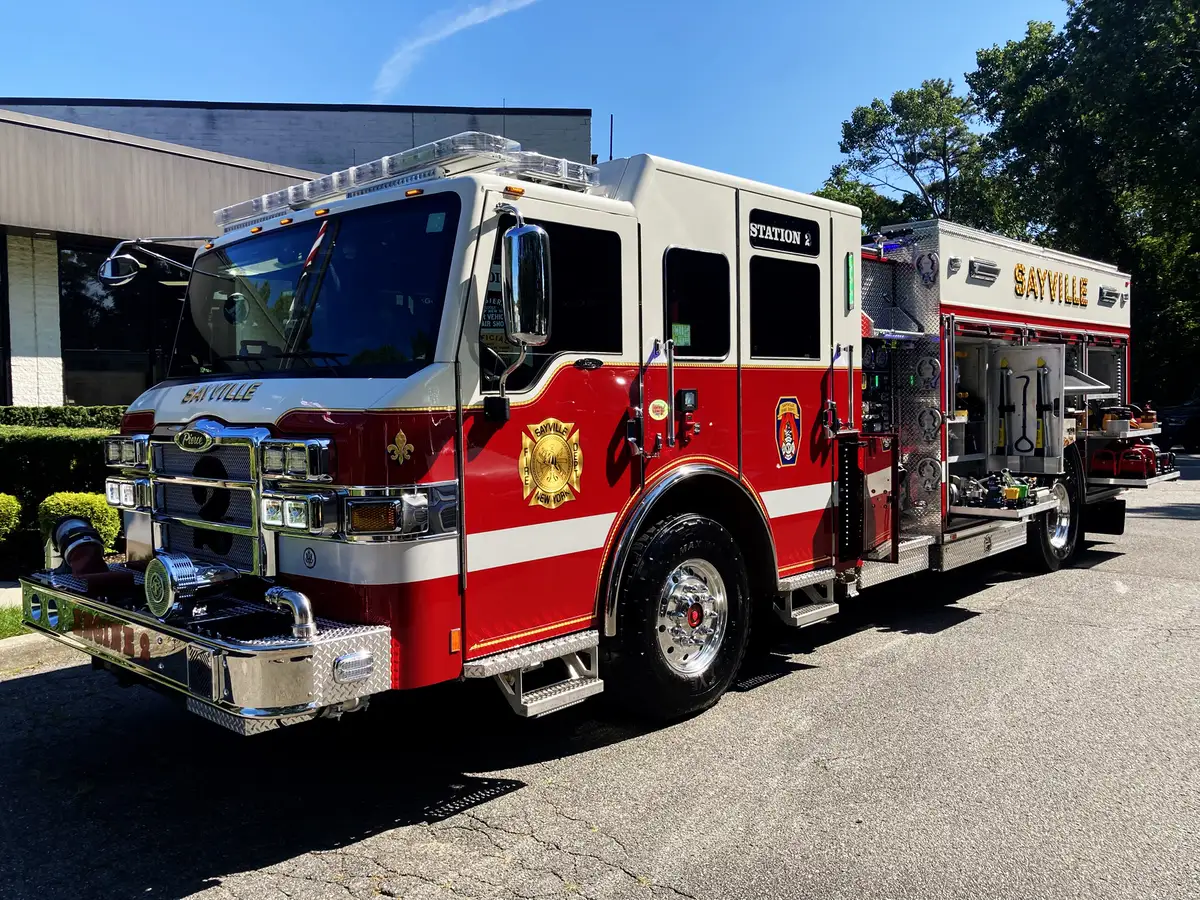

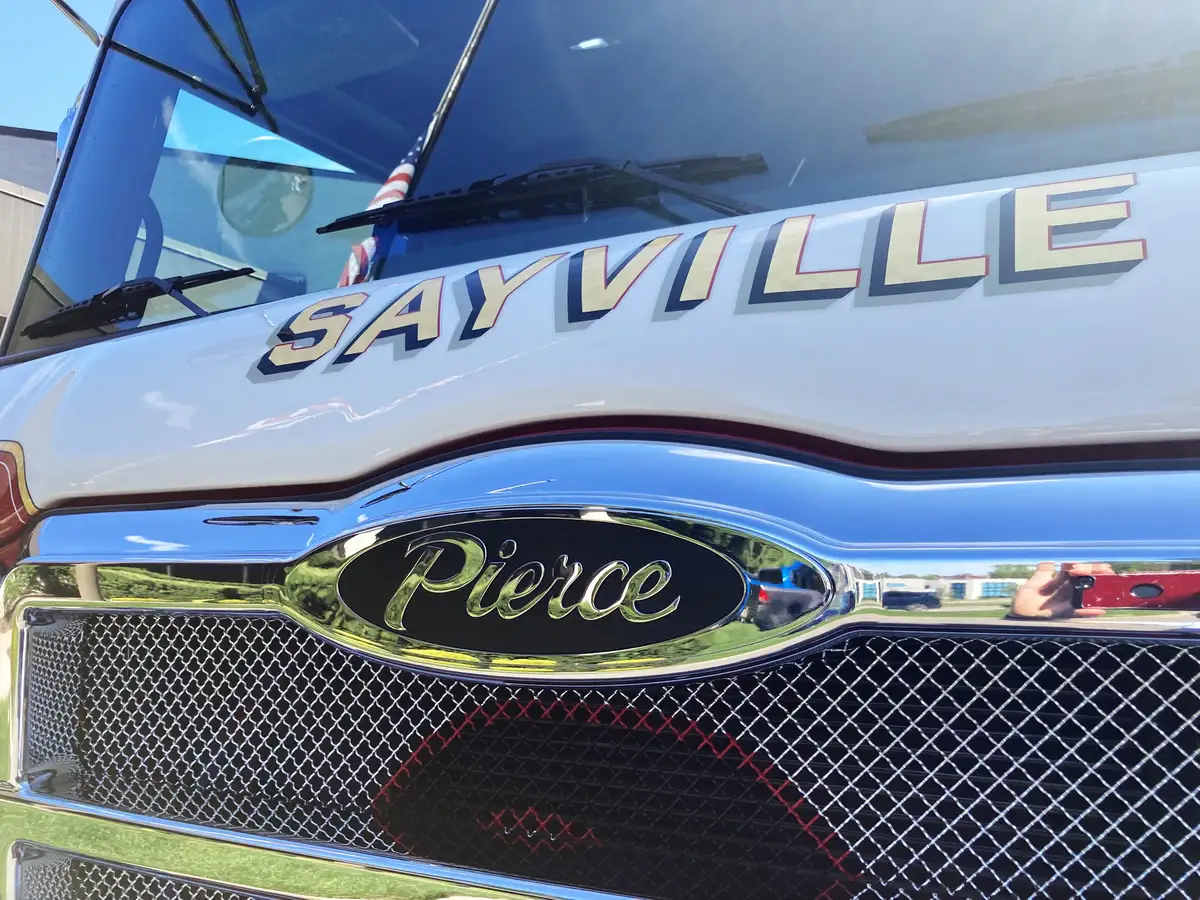

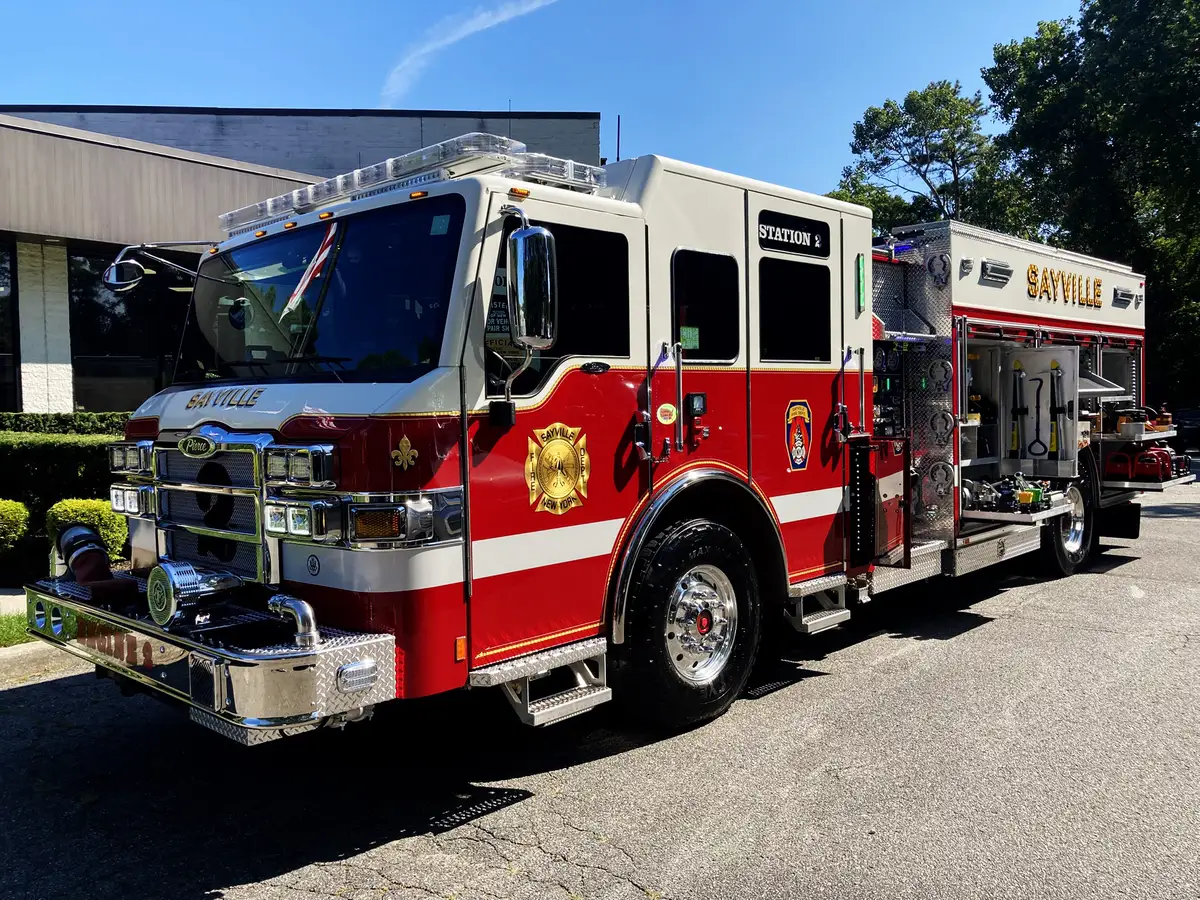

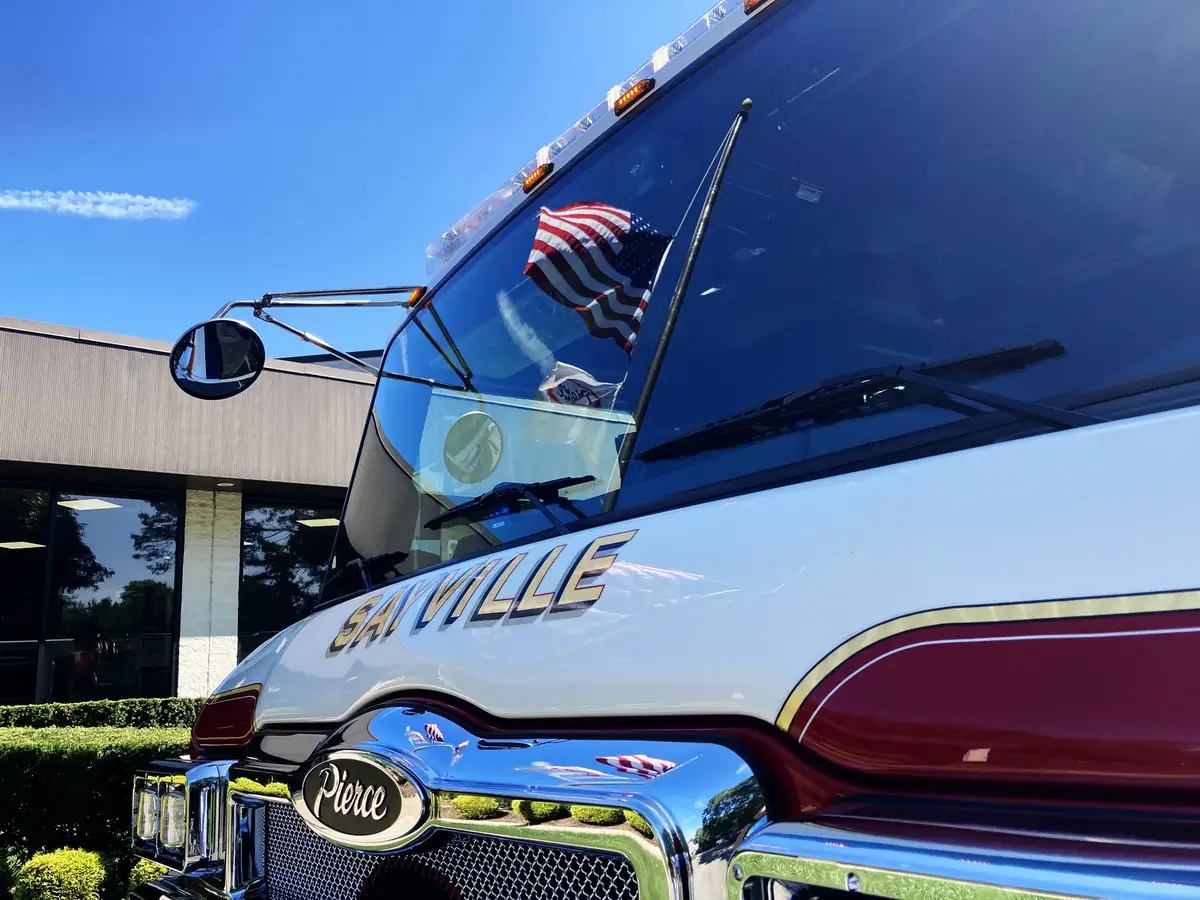

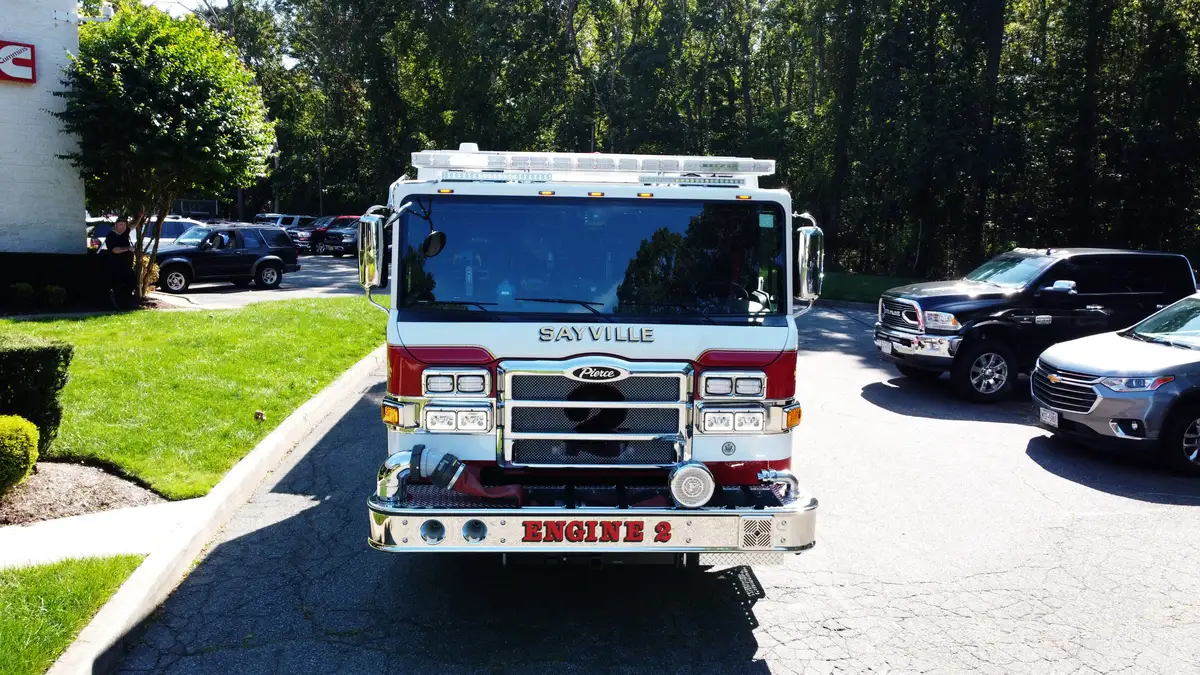

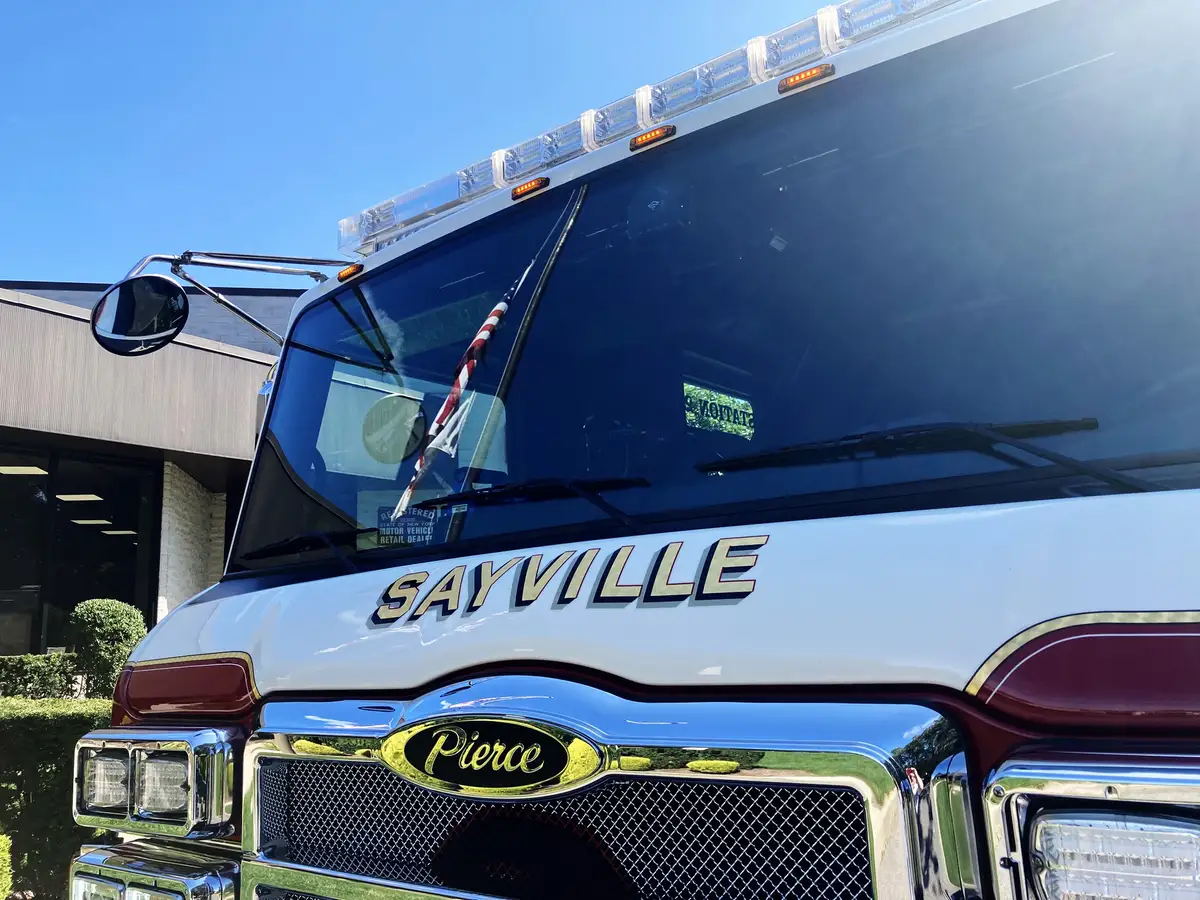

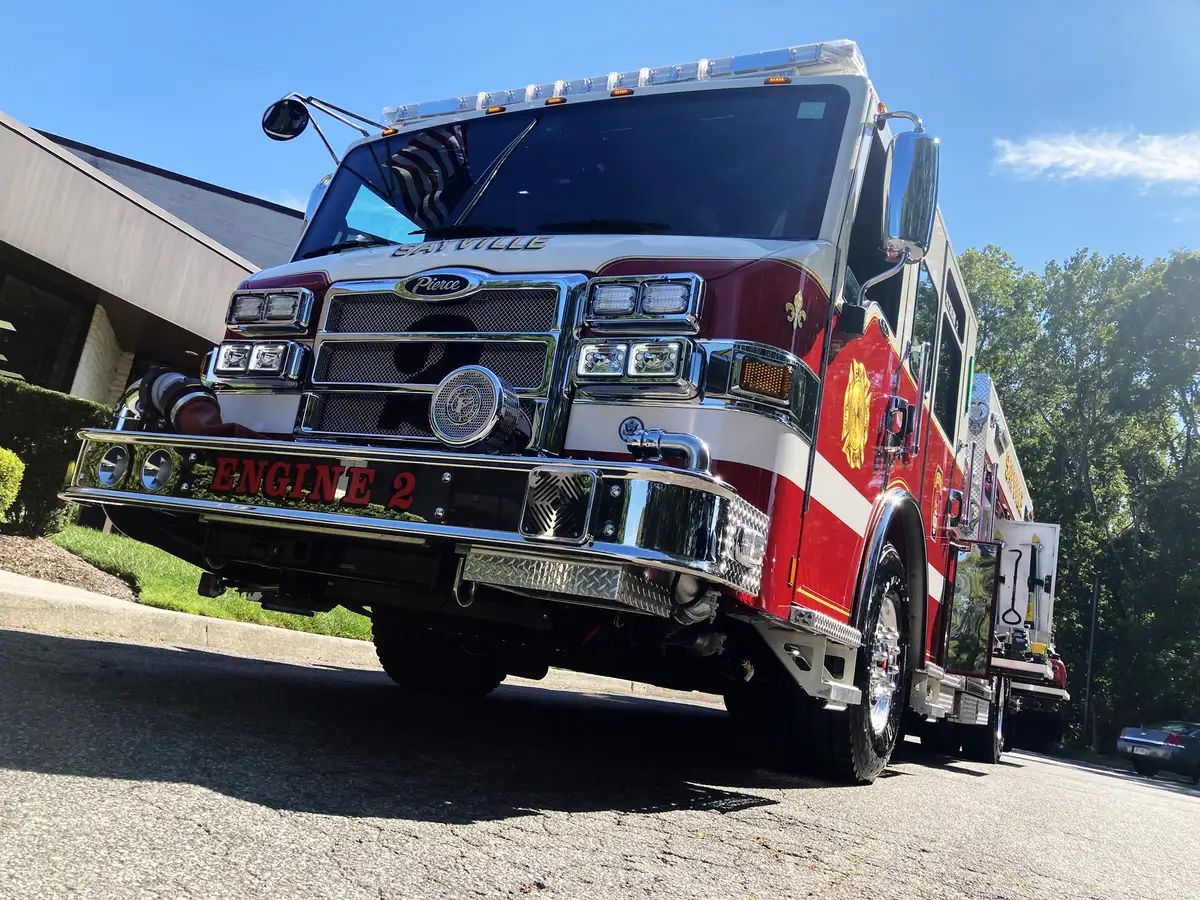

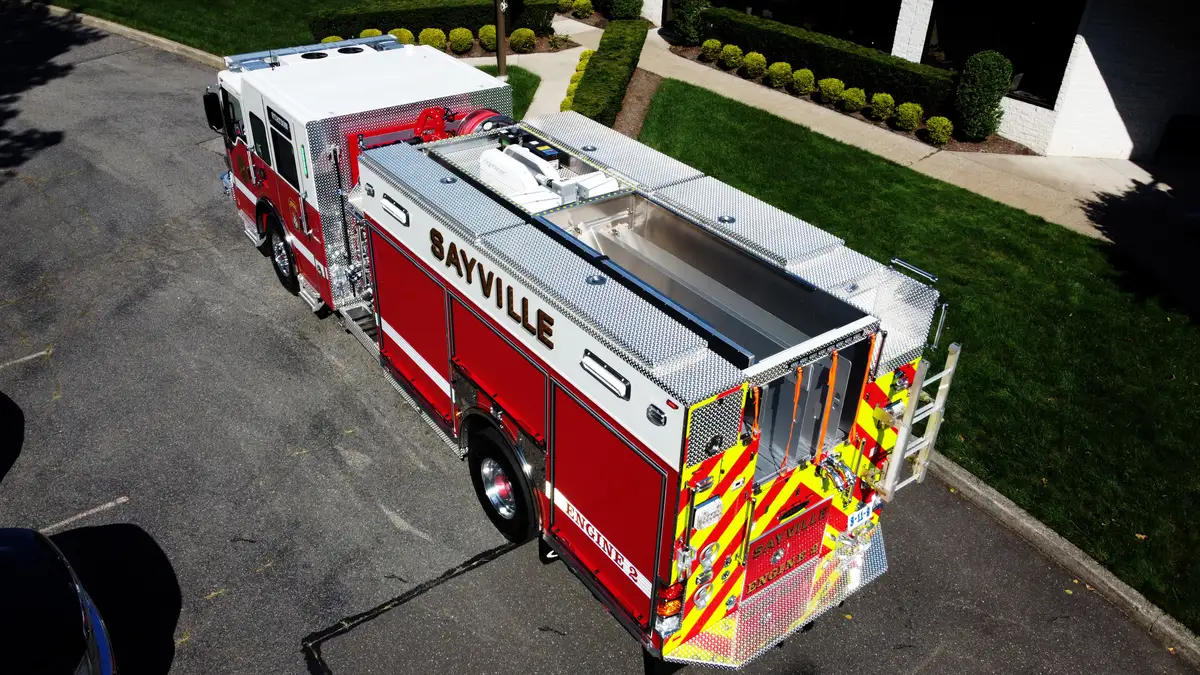

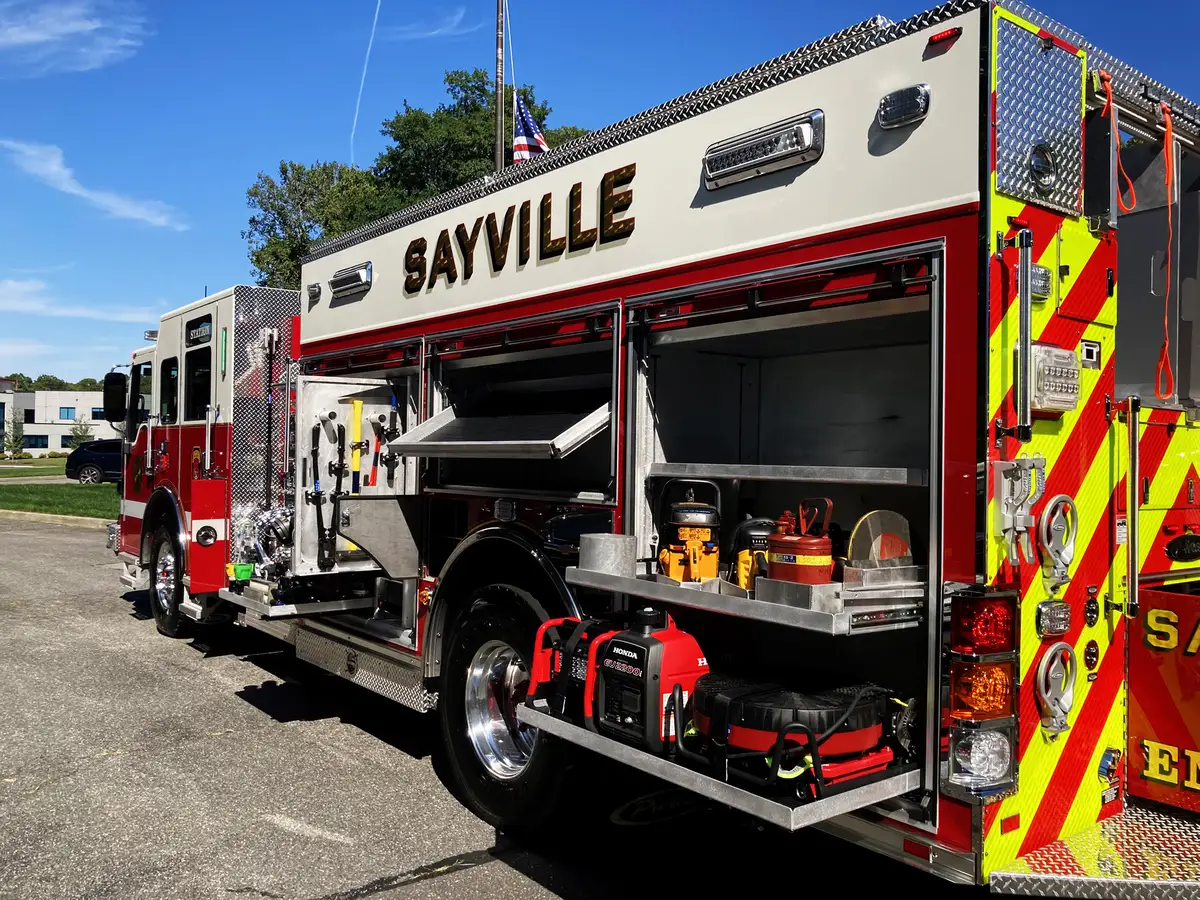

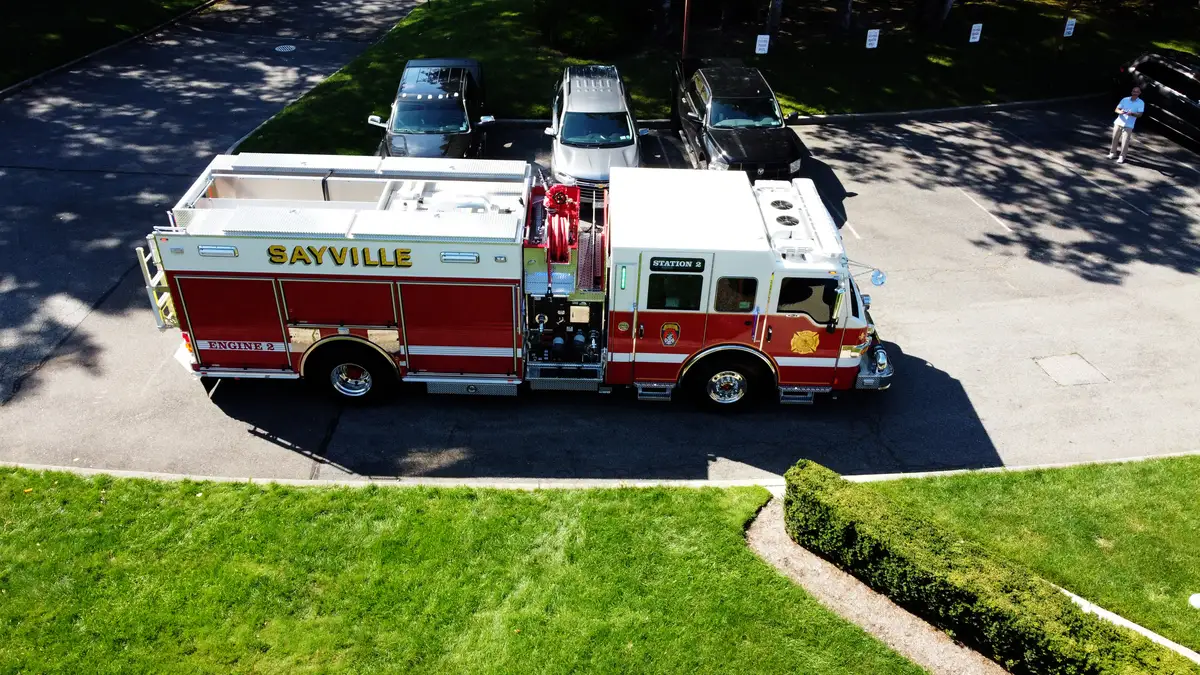

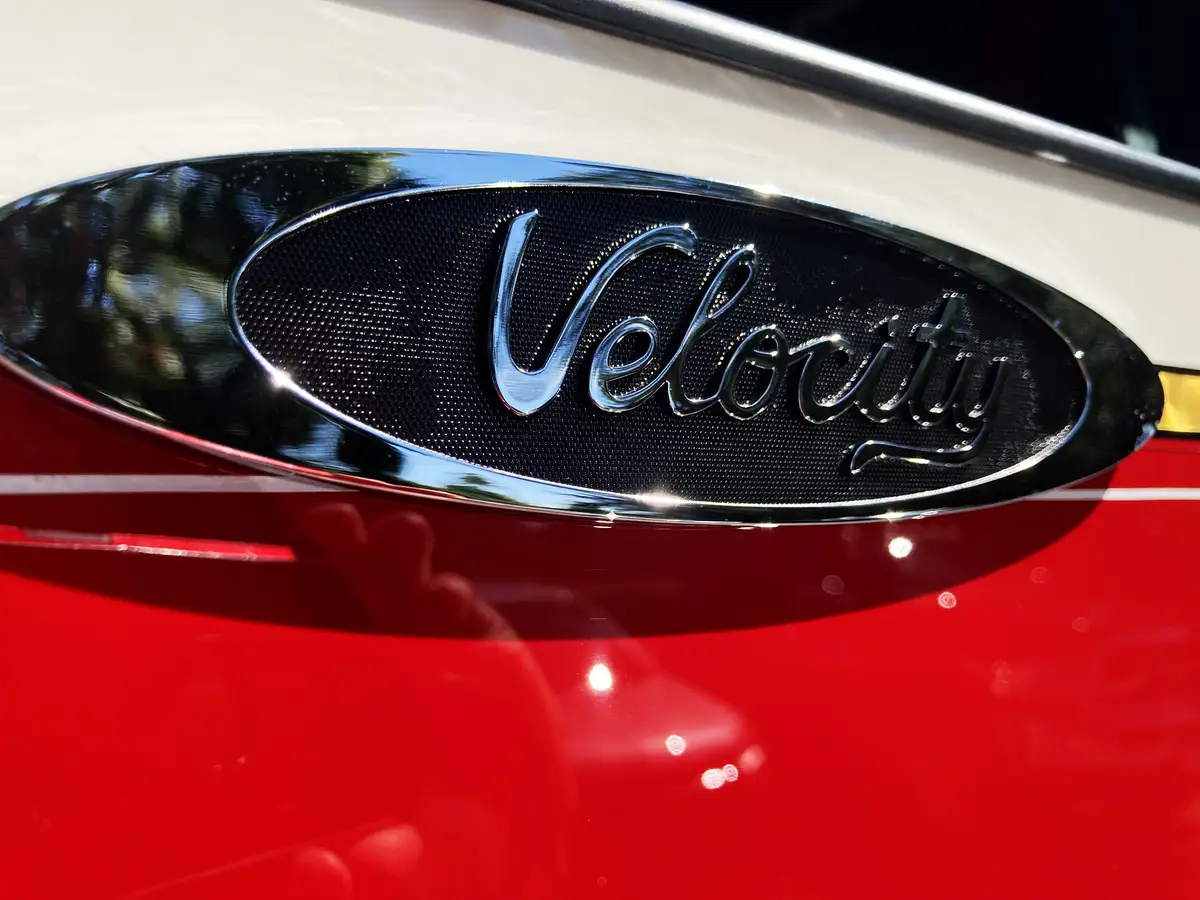

  • Customer/Build: Sayville Fire District — Heavy Duty Rescue Pumper on Pierce Velocity chassis.
  • Overall size: Height 121"; length 35' 1"; wheelbase 217"; GVWR 53,800 lb.
  • Engine/Trans: Cummins X12 (500 hp, 1,700 lb-ft) with Allison 4000 EVS.

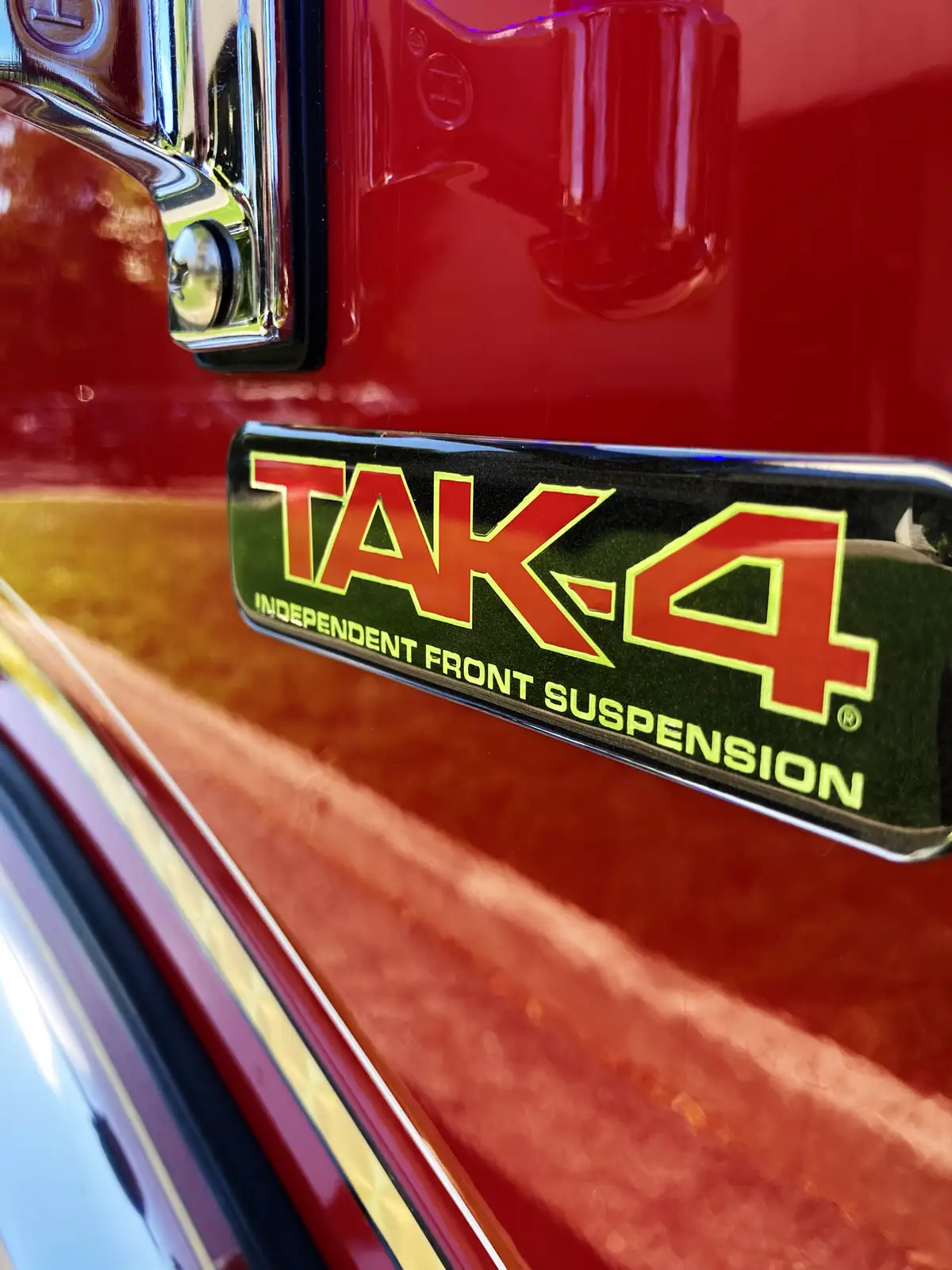

  • Axles/Suspension: TAK-4 front axle 22,800 lb; Meritor RS30-185 rear 31,000 lb; rear spring suspension.
  • Tires: Front 425/65R22.5; rear 315/80R22.5 (single).
  • Water tank: 750-gallon poly, low hose bed configuration.

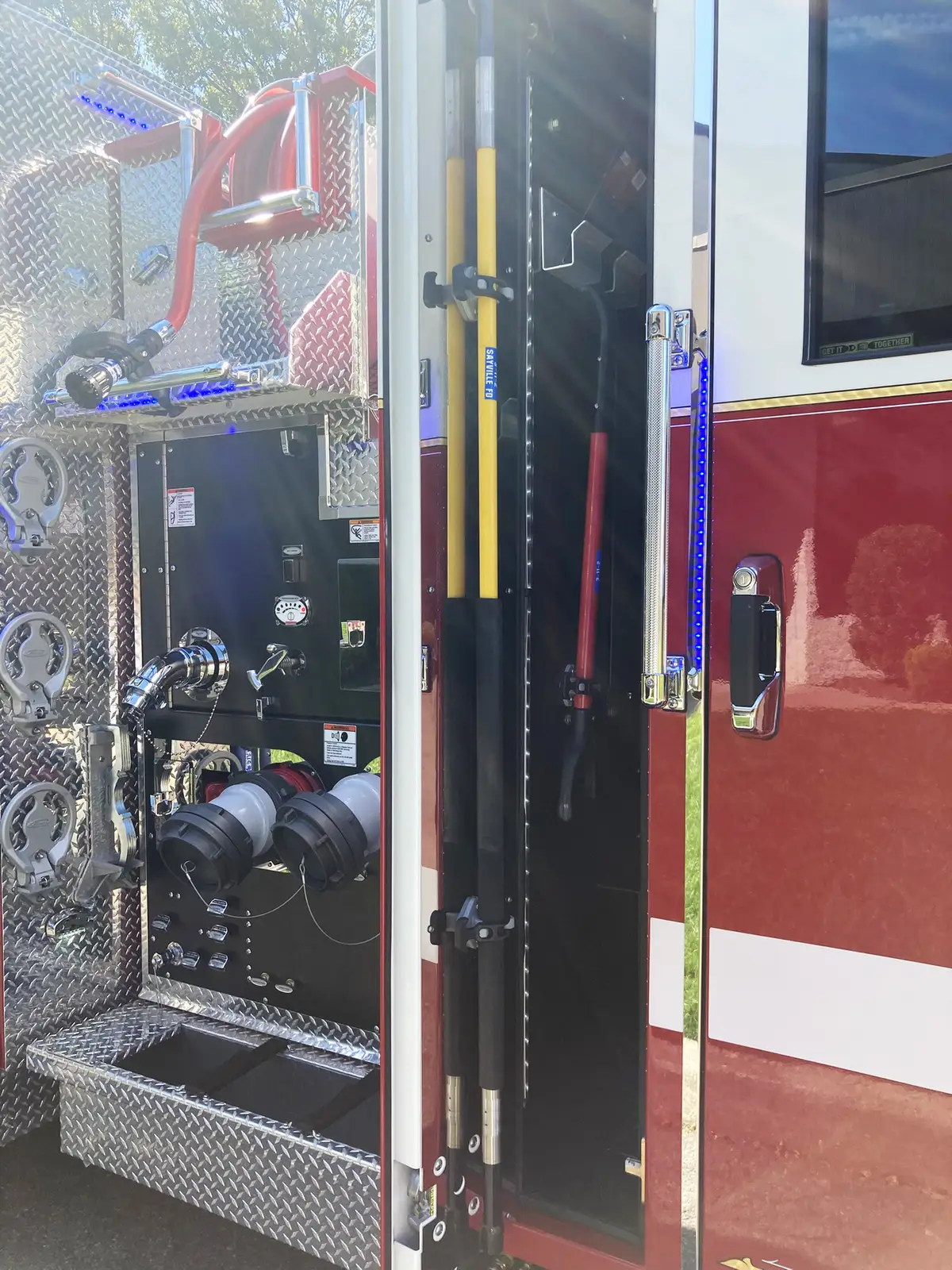

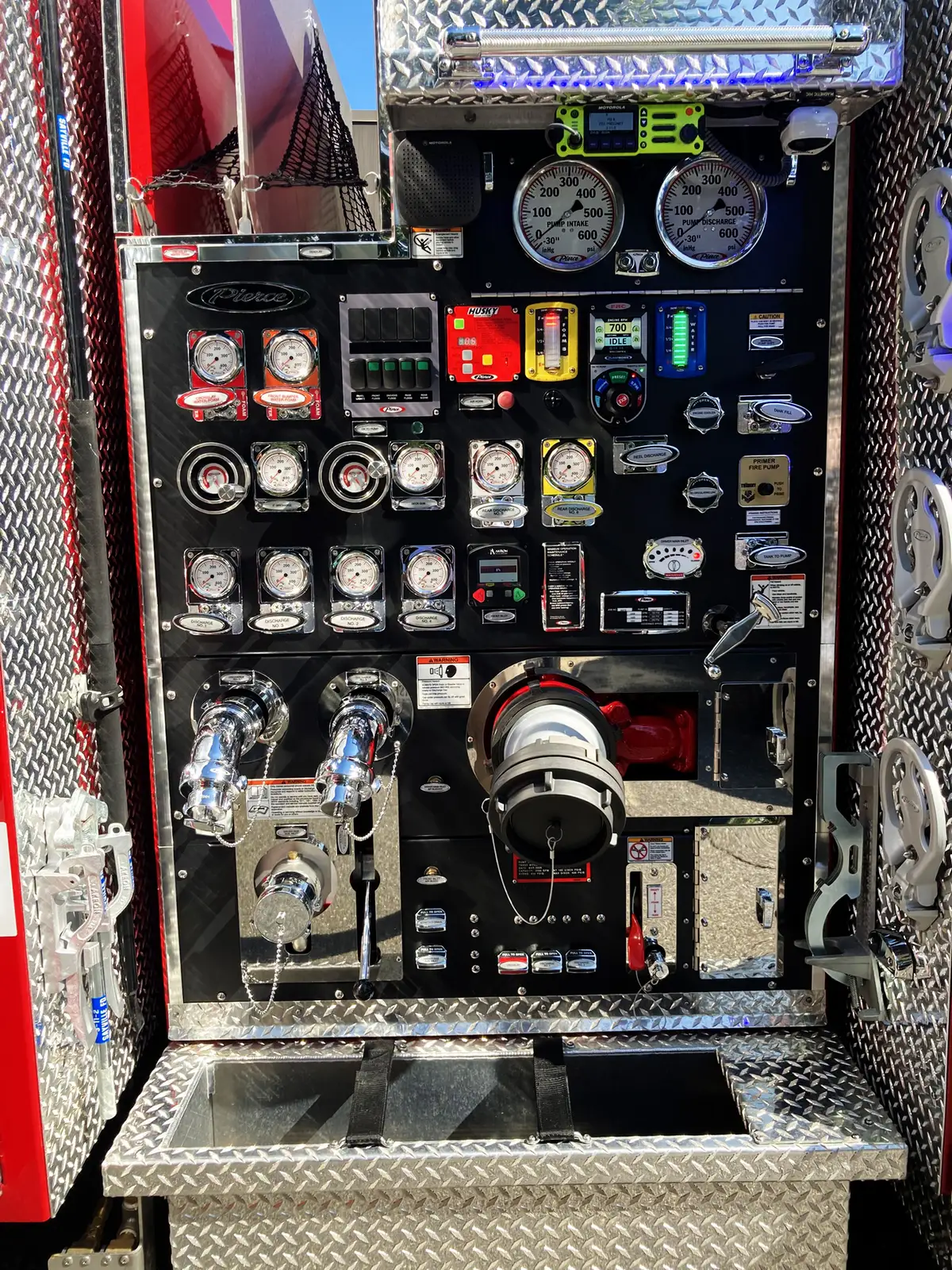

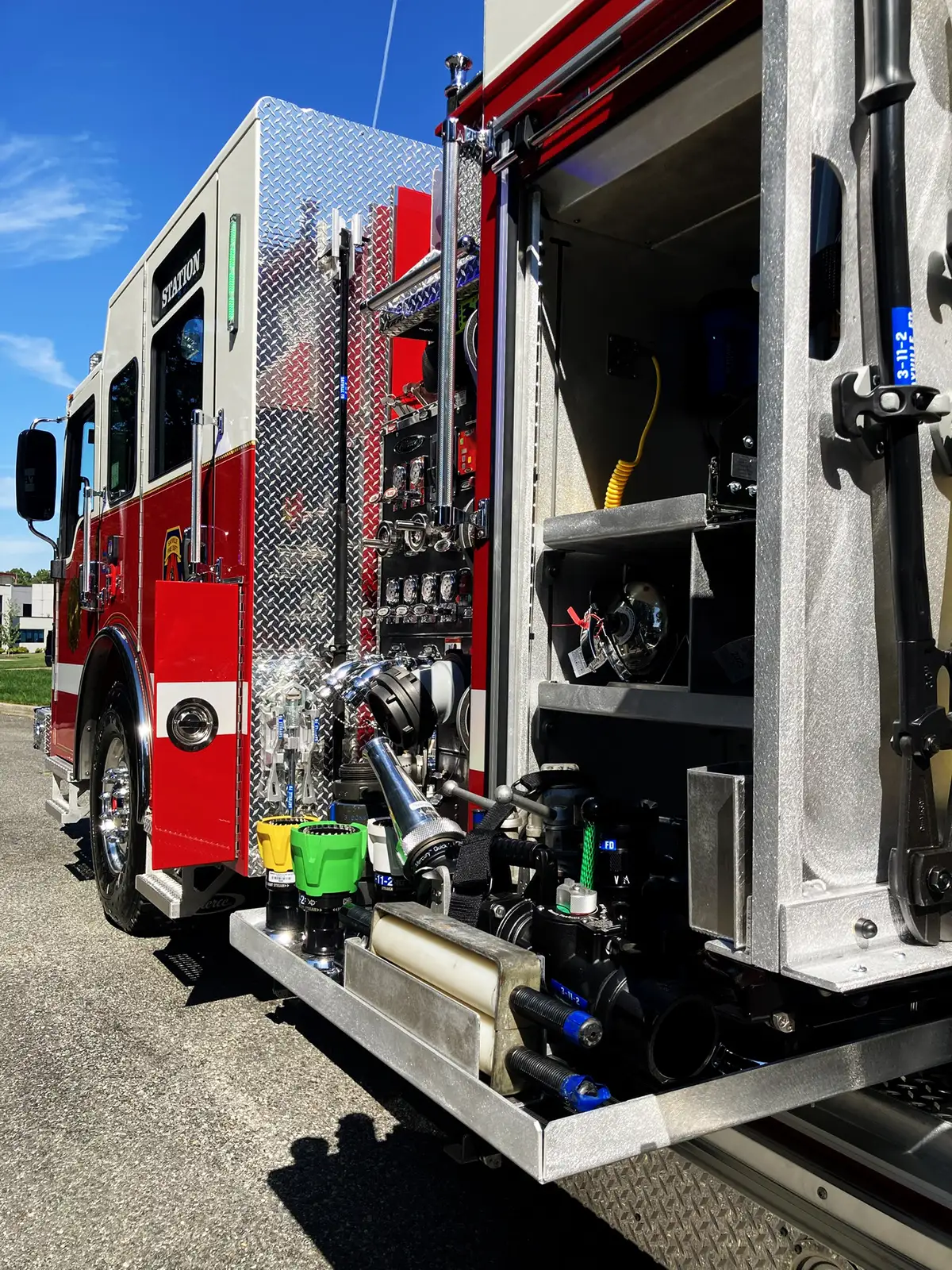

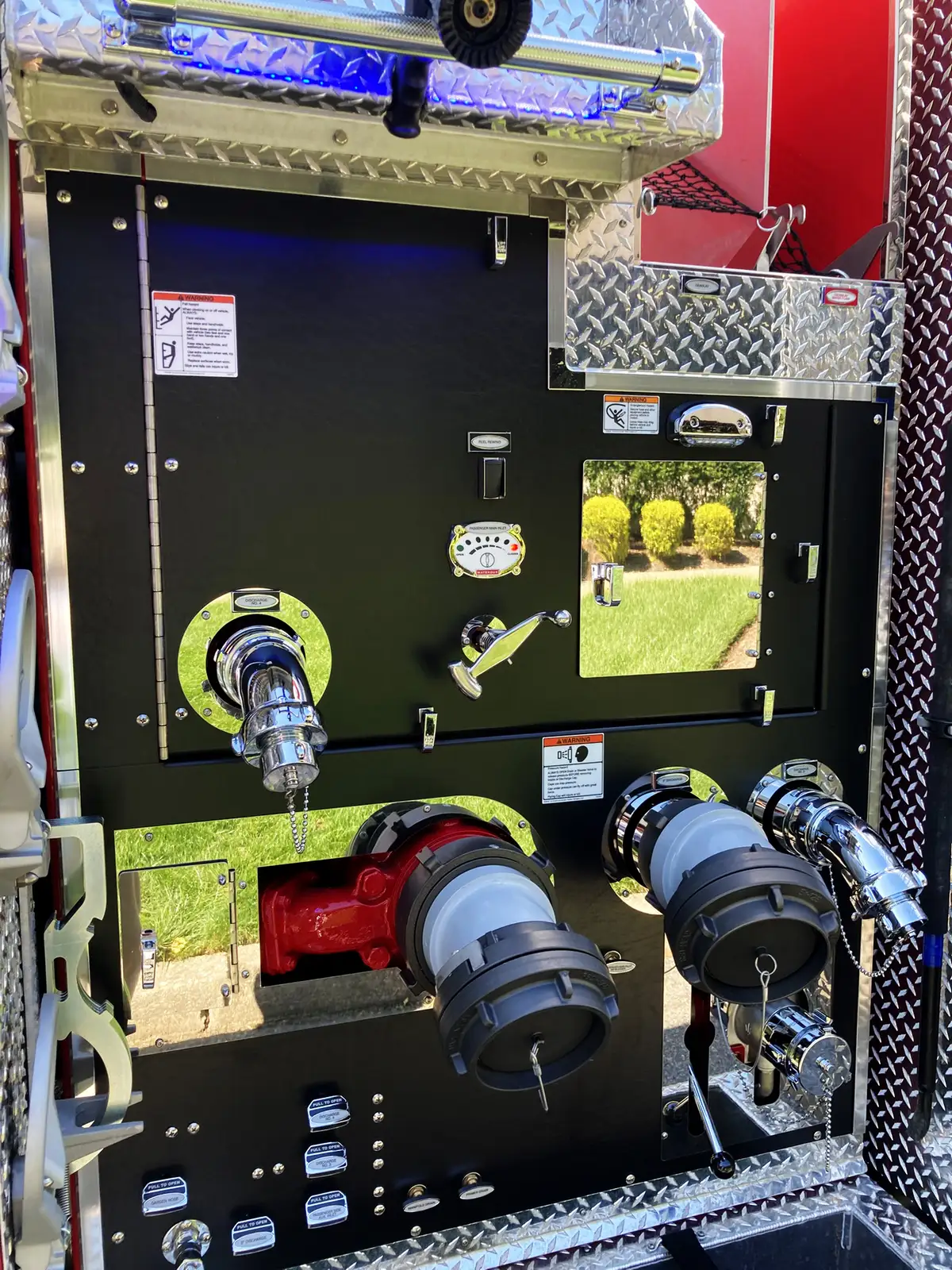

  • Pump: Waterous CSU, 2000 GPM, single-stage; split-shaft with air manual override.

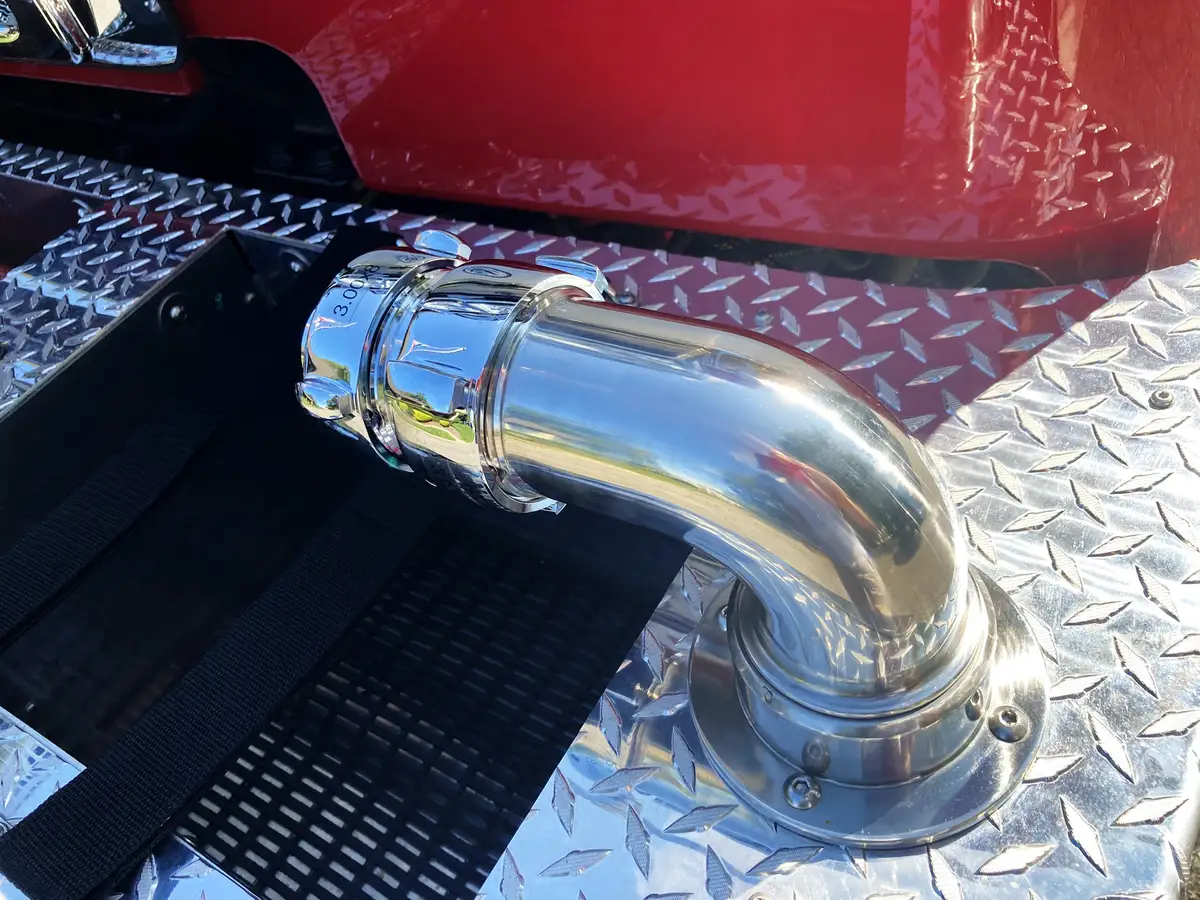

  • Front suction/inlet: 4"–6" front inlet, 5" stainless plumbing, top of bumper with electronic controller.

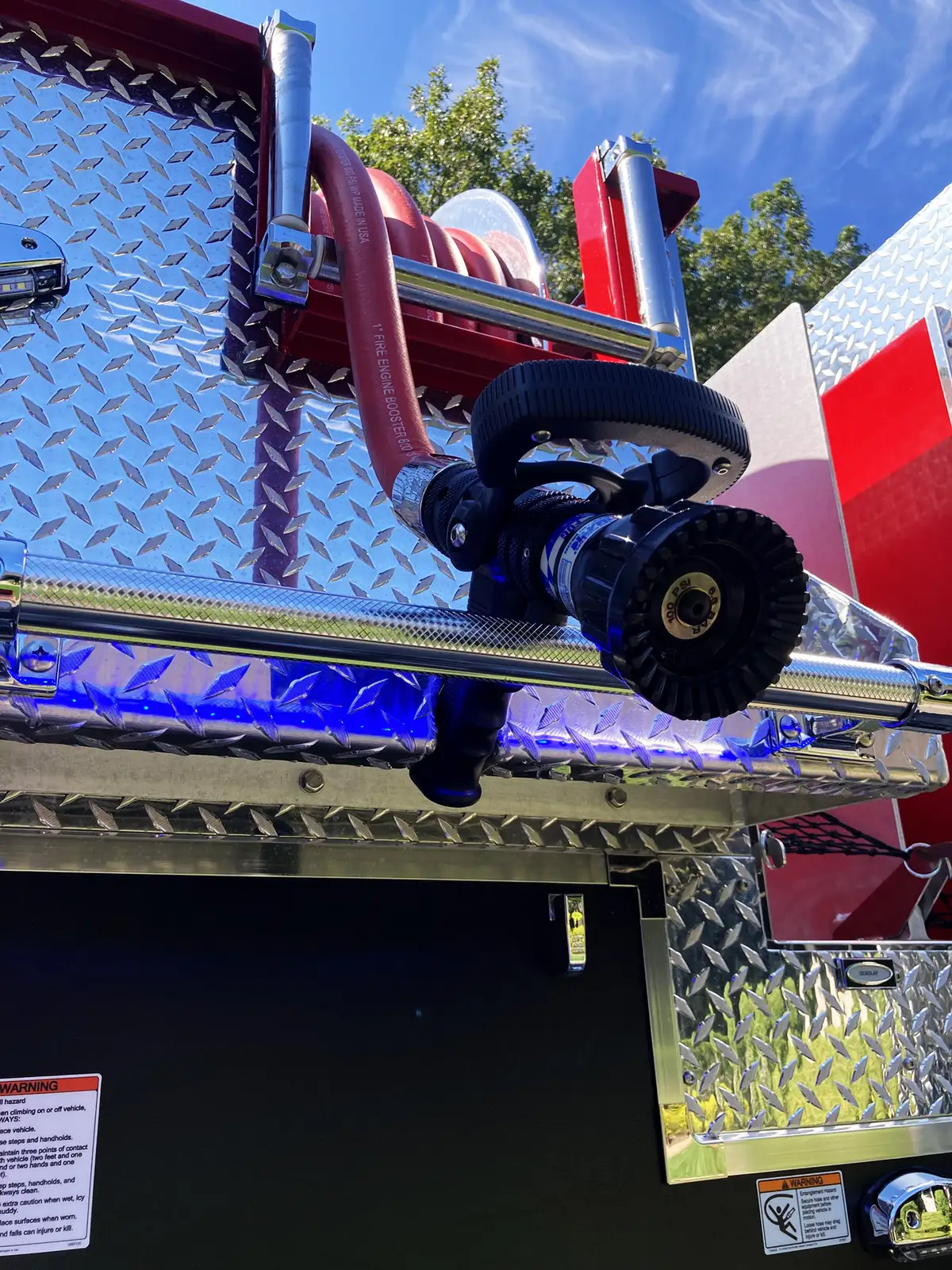

  • Foam system: Husky 3 single-agent with 30-gal Class B foam cell; discharges at front bumper and crosslay.

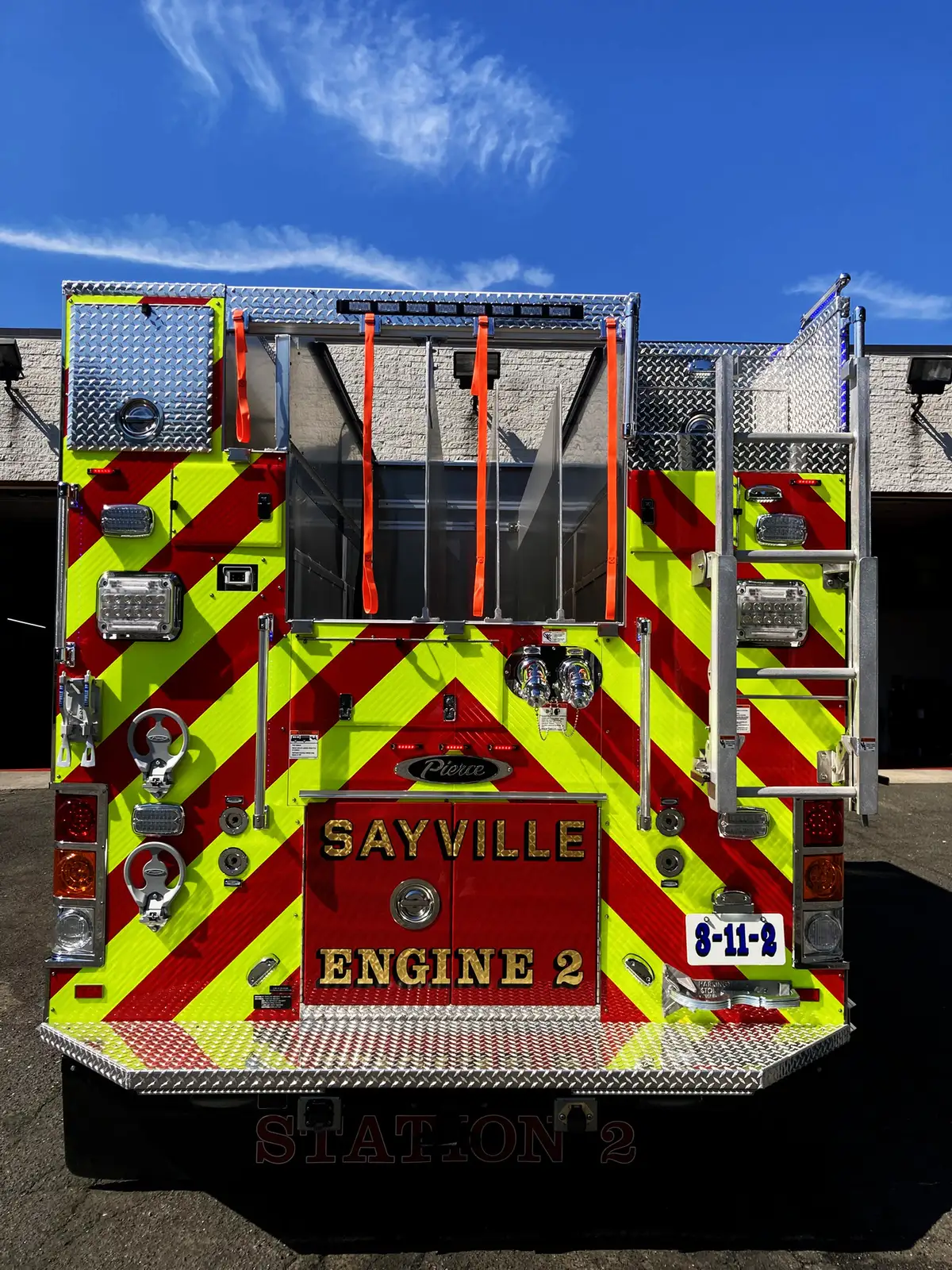

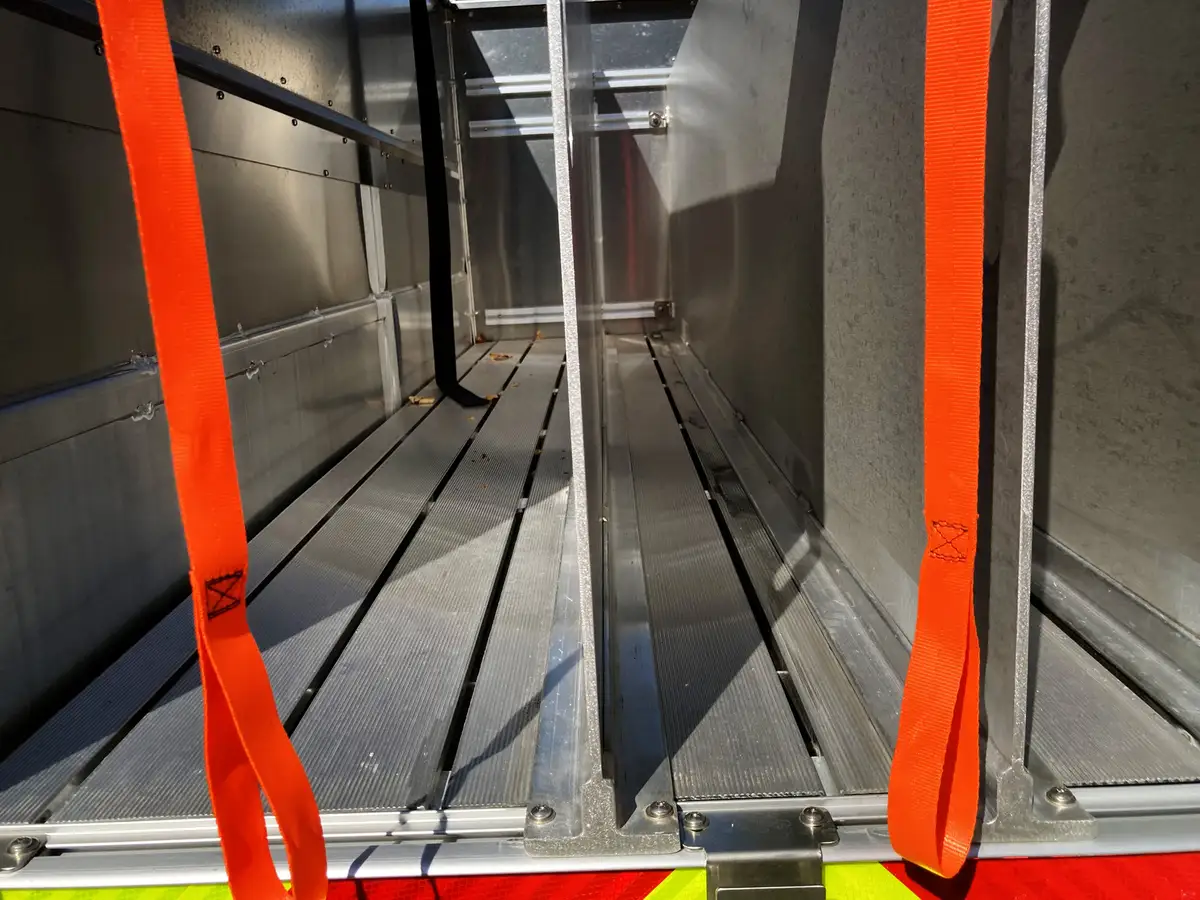

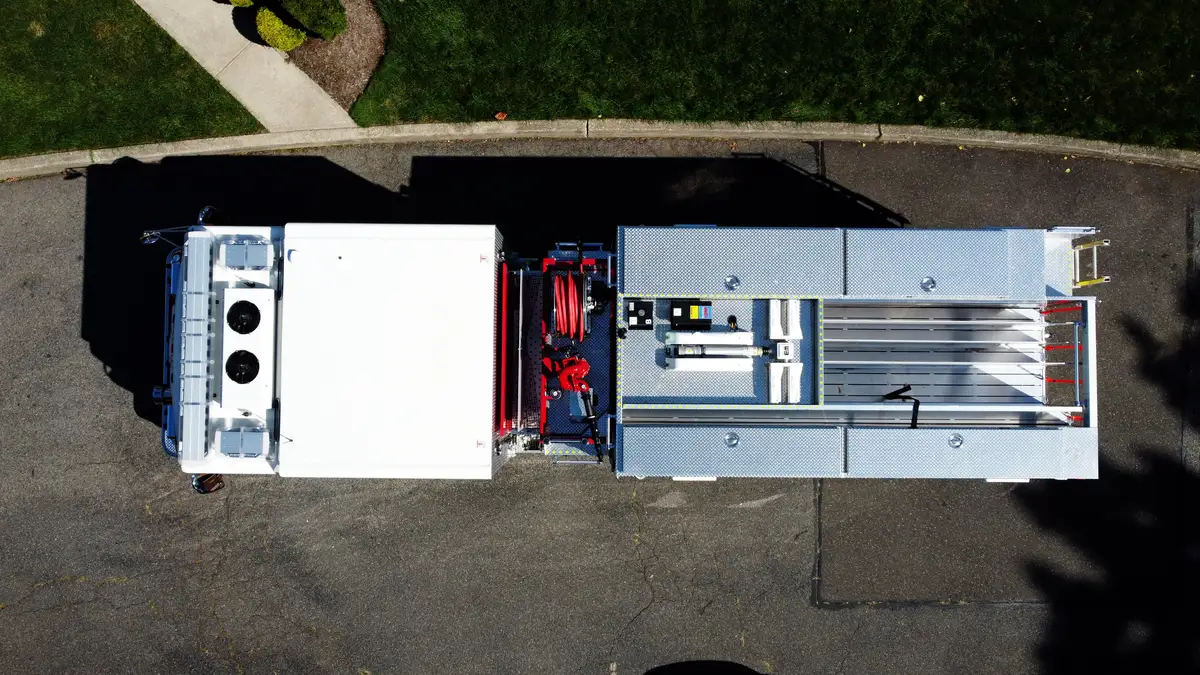

  • Hose bed capacity: 850' of 5"; multiple stacked beds for 2.25" and 1.75".
  • Crosslay/booster: (1) 1.5" crosslay (200' of 1.75"); booster reel 150' of 1" (200' capacity).

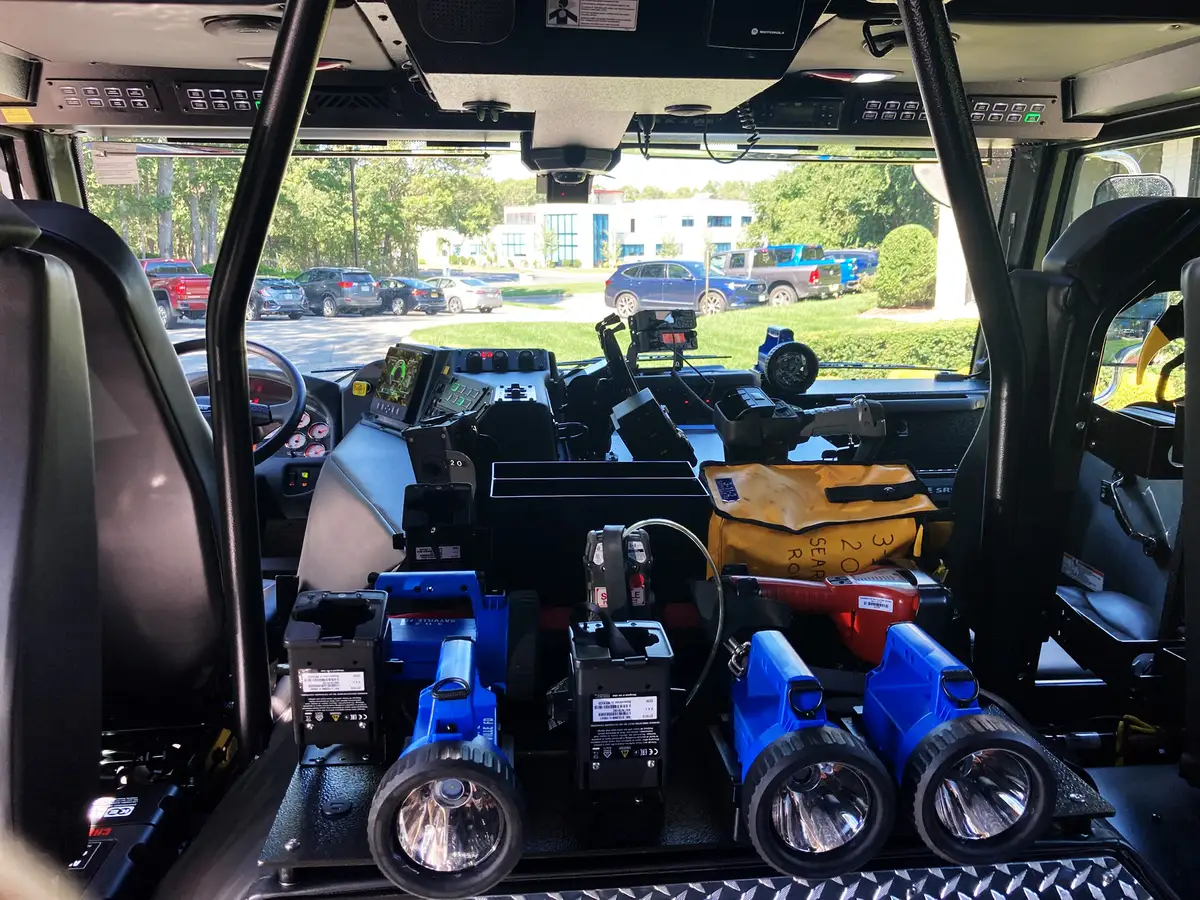

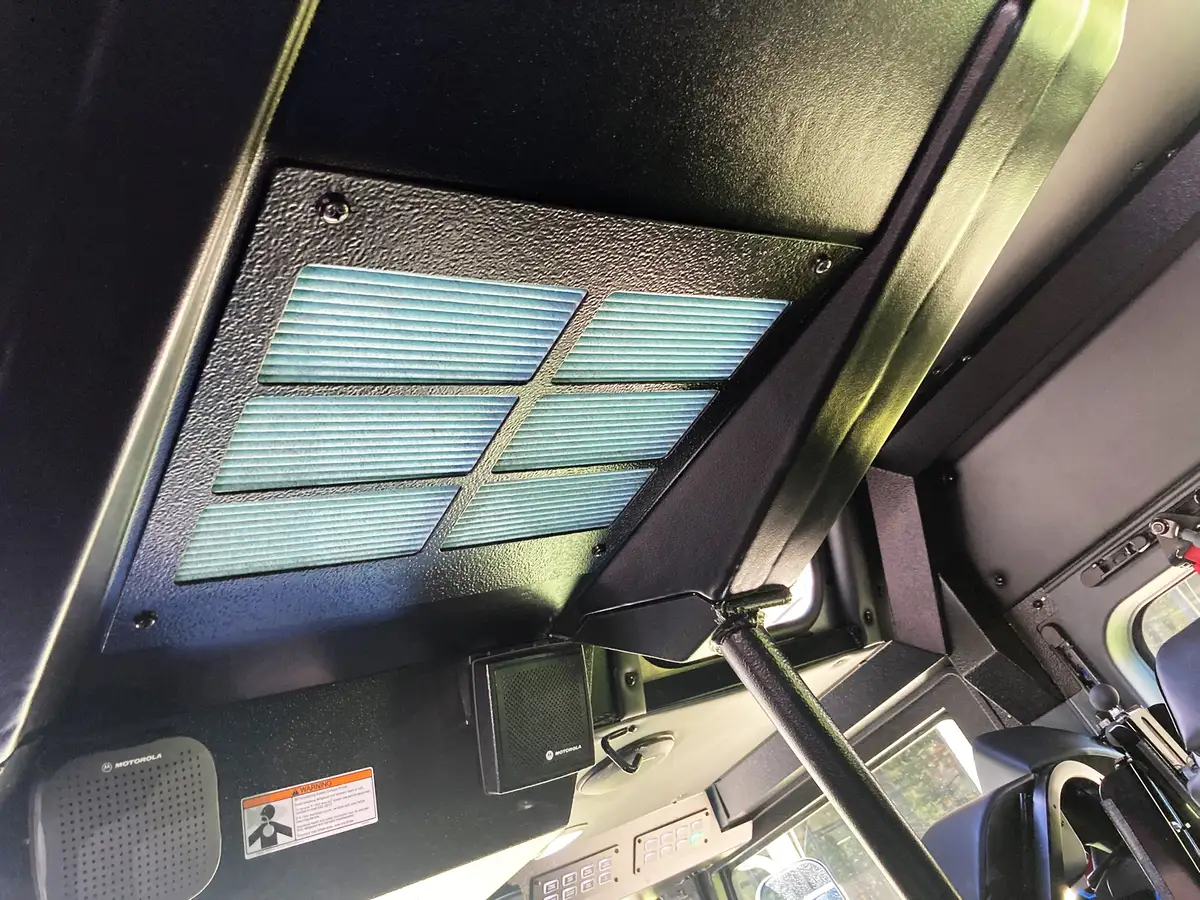

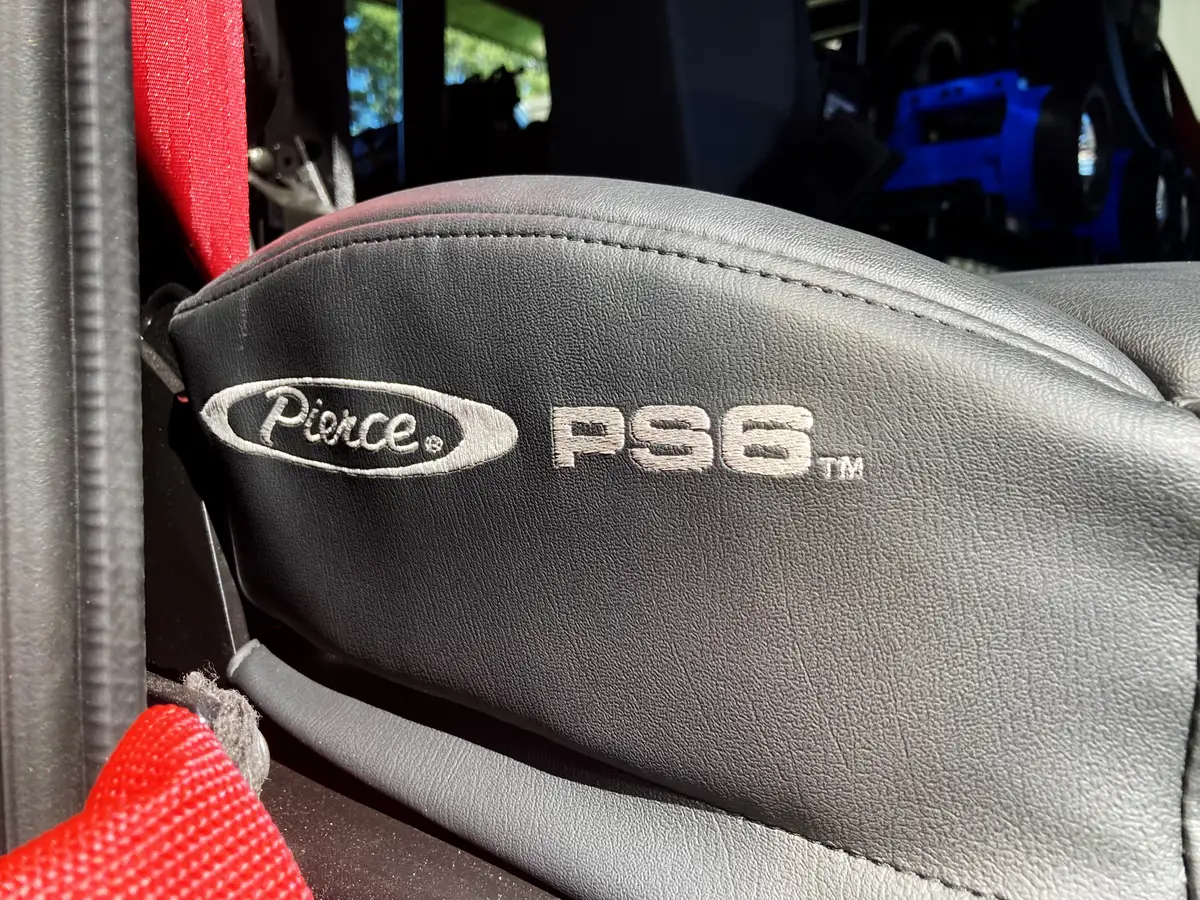

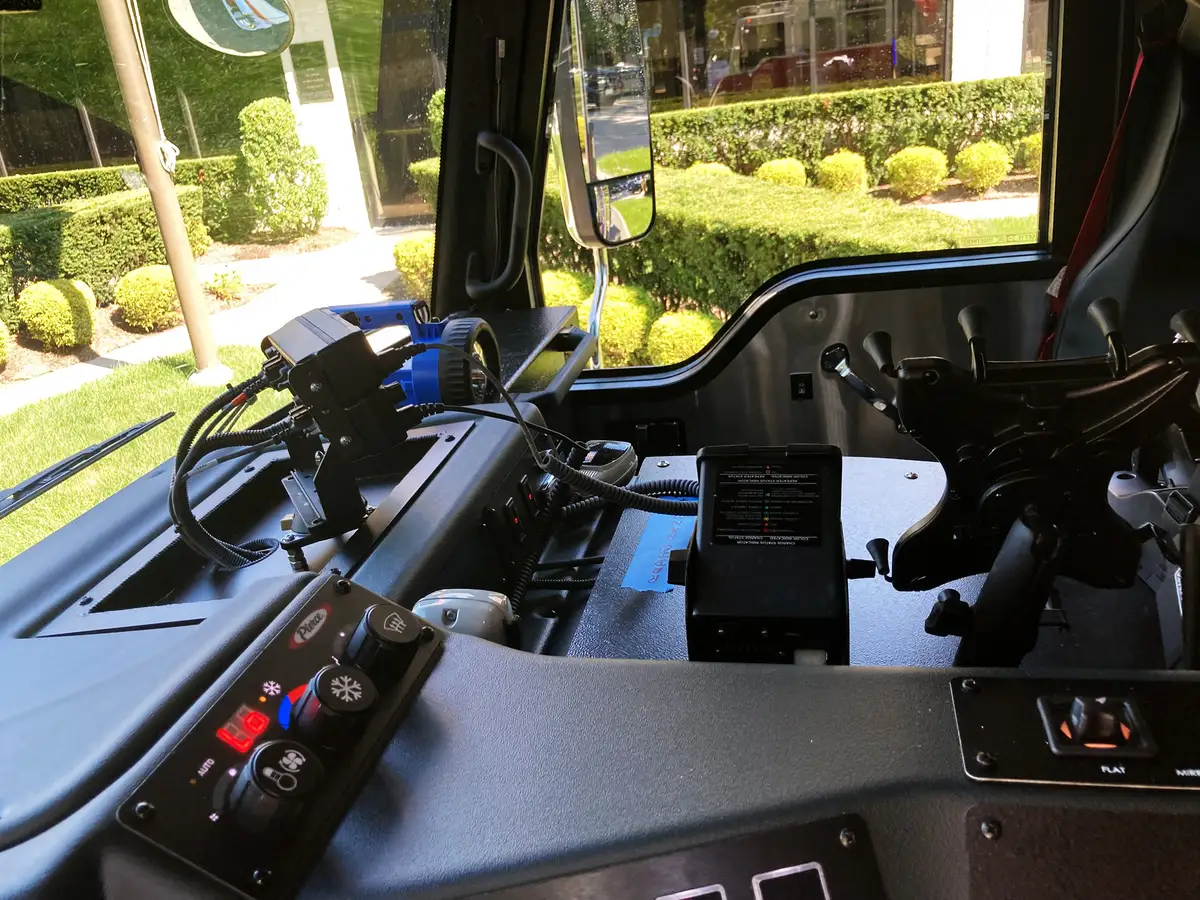

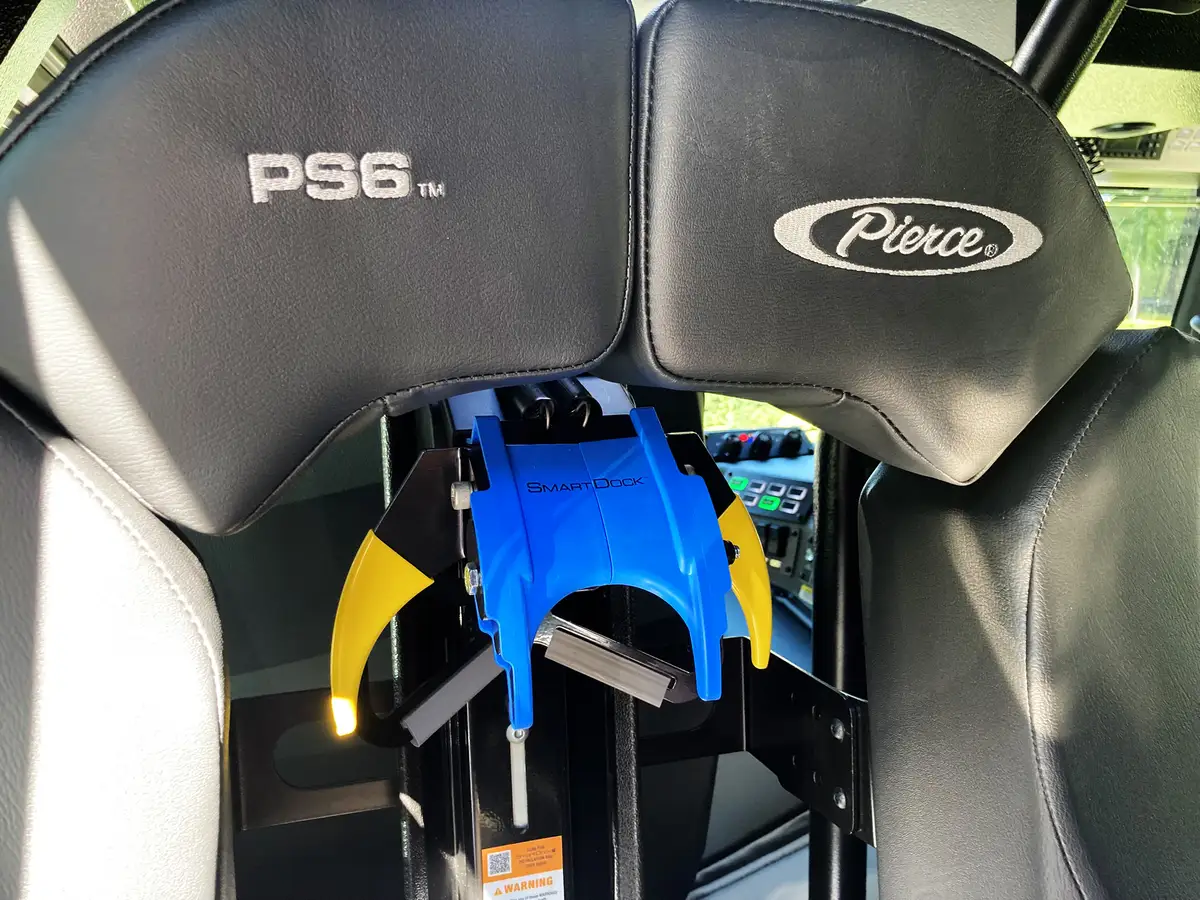

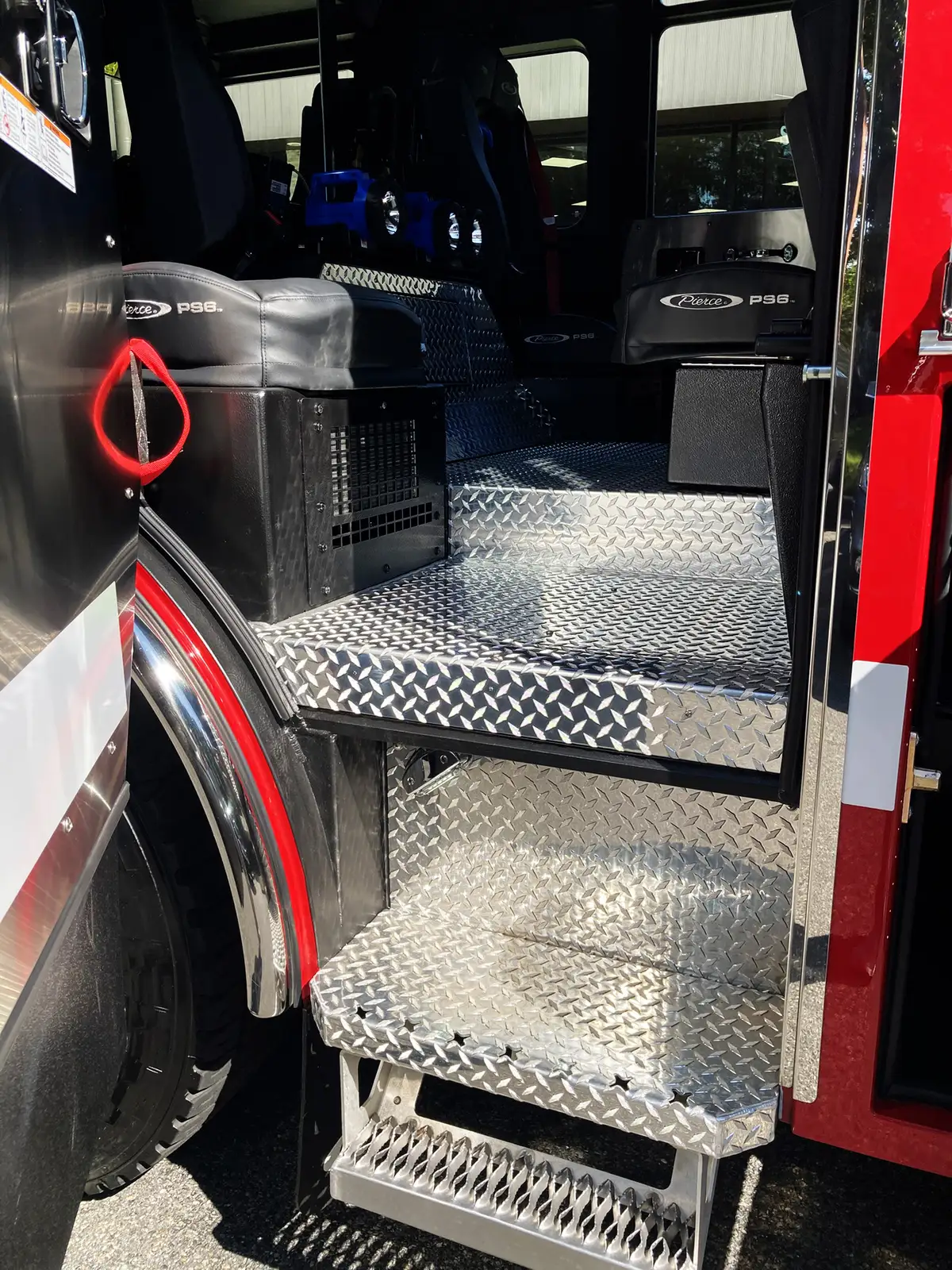

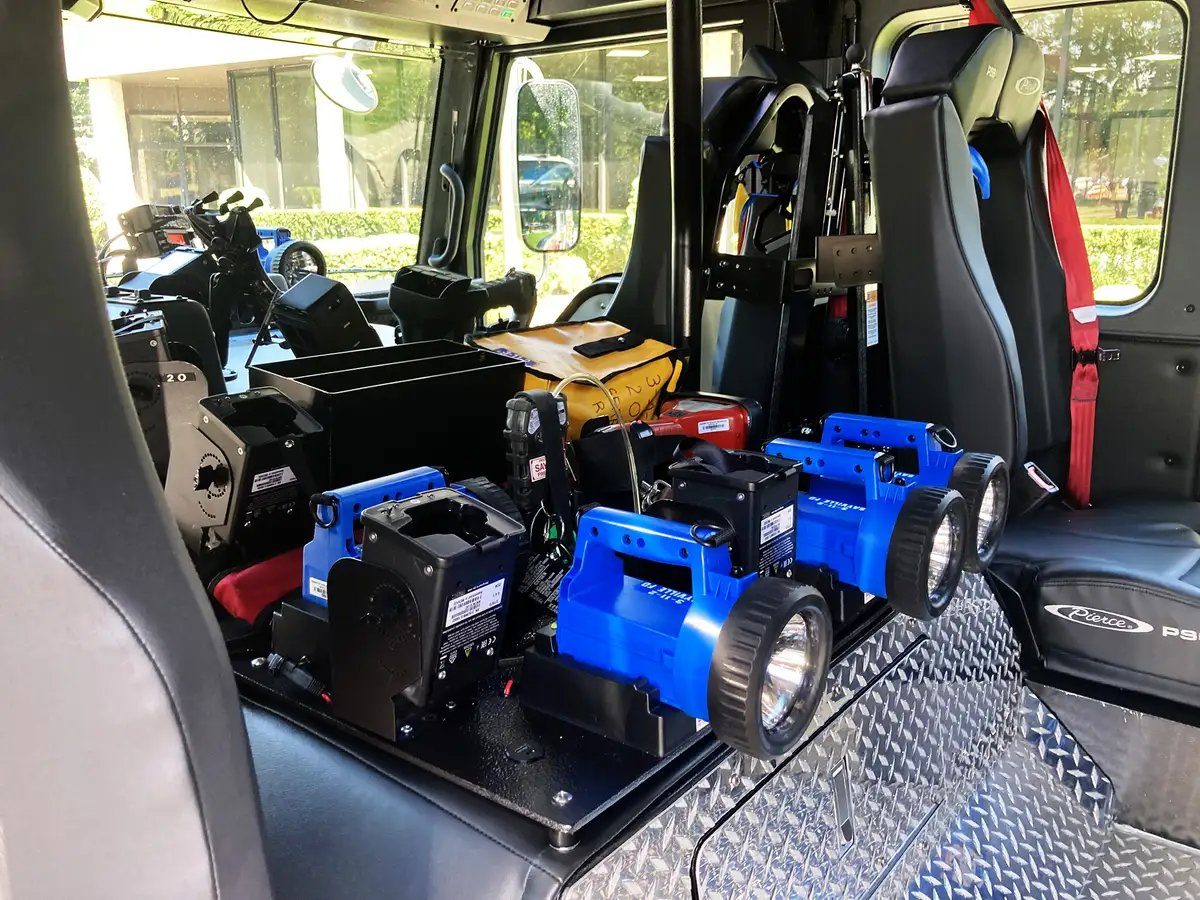

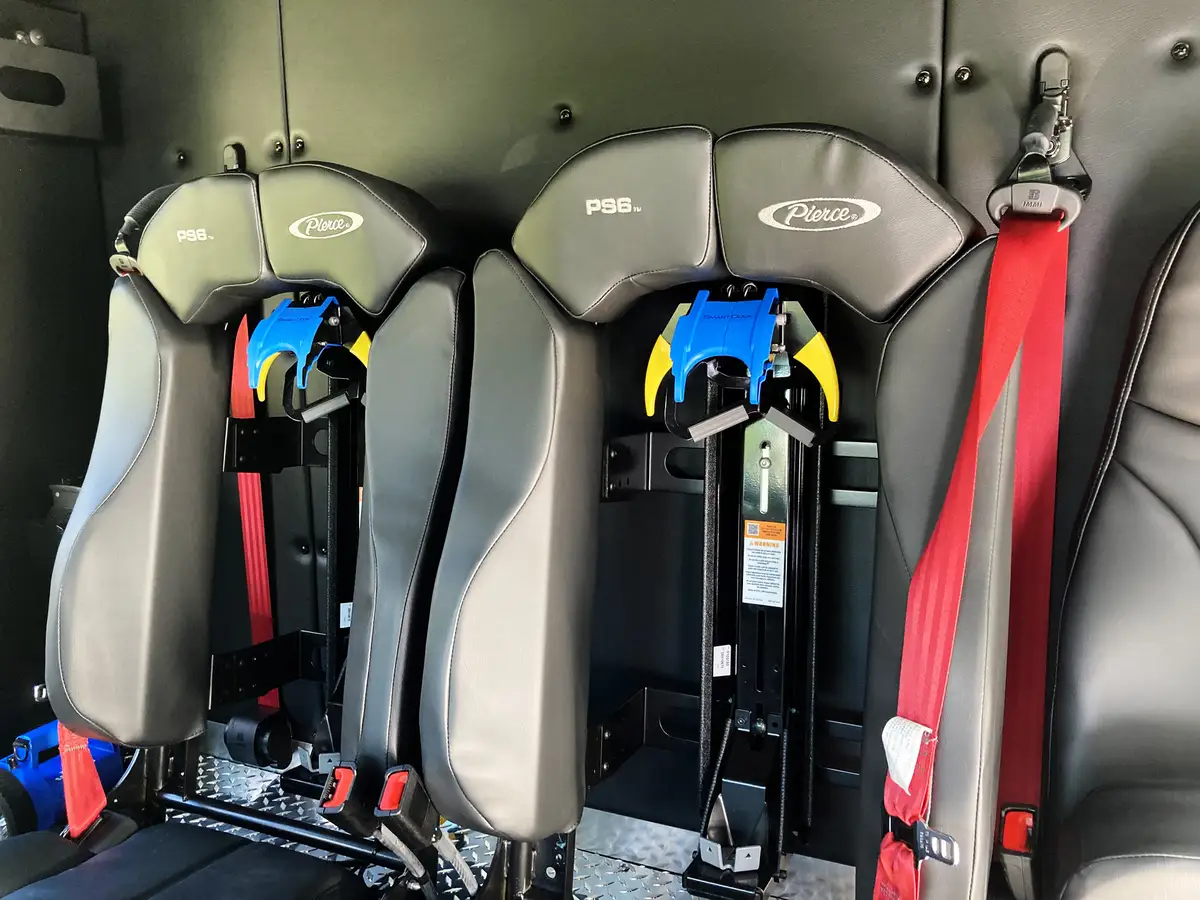

  • Seating/cab: 6 seats in raised-roof Velocity FR cab.
  • Scene lighting: Will-Burt light tower (flood/spot) with controller at DS front body compartment.
  • Certifications: NFPA 1901 vehicle inspection/certification; UL apparatus certification.
