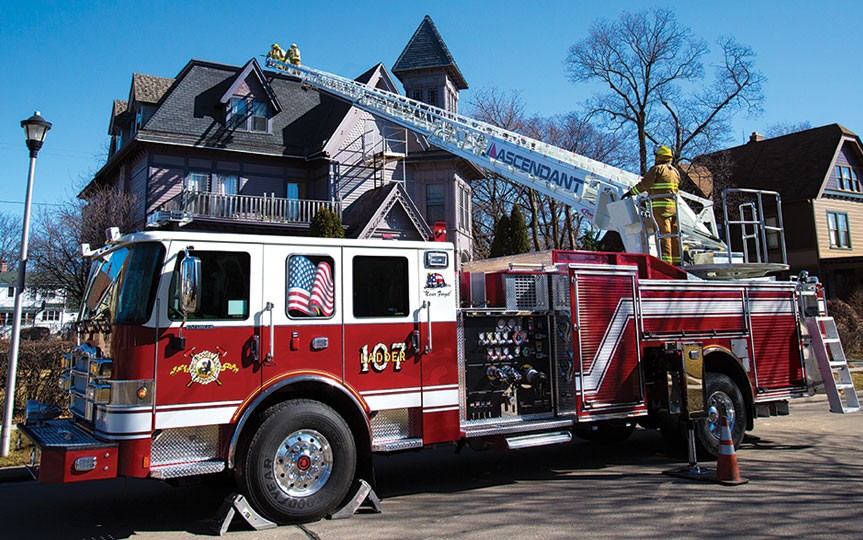

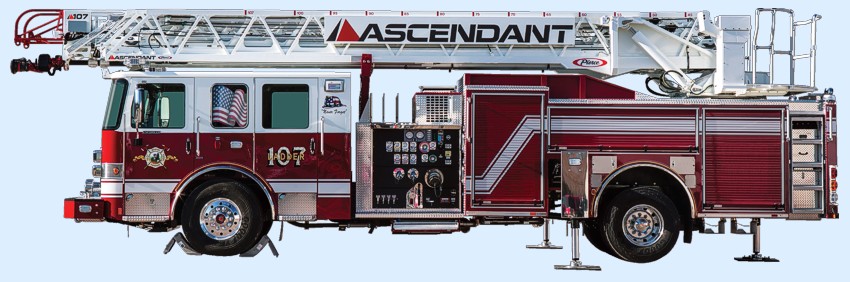

Ascendant 107' Aerial

THE INDUSTRY CHANGED

• Vertical Reach 107'
• Horizontal Reach 100'
• Tip Load Dry 750 lb (with 35 mph wind load)
• Tip Load Wet 500 lb (with 35 mph wind load)
• 100 lb Tip Accessories (in addition to rung lighting)
• Flow Rate 1500 gpm
• Jack Spread 18' / 13' Short-Jacked
• Collision Avoidance: Standard
• Multiplexed
• Ladder Material 100K psi Steel
• Innovative Gusset Design
• Number of Stabilizers: 3
• Water Capacity 500 gallons
• Available with ISL, ISX12, DD13
• 2500 lb equipment allowance
• Set Up 6% level up to 12% uphill slope
• E-Coated pedestal / torque box
• Rear single axle
• 30° nozzle store front blitz
• 10° below grade operation of the ladder
• Only one set of horizontal stabilizers
• 75' maneuverability with 107' reach
• Weight efficiency: less weight than 105' ladder; very similar to 75' weight
• Lower cost of ownership (turntable bearing bolts, access panels, filter locations, E-Coating, etc.)
• Great performance at lower cost (single axles, medium block engine and MD transmission)
• Short overall length of 39'2", height 11'5"
• Can operate truck as a pumper / EMS runner / meets NFPA Quint status
• ISO rating points
• Clean aerial tip, no coil cord
• Configured on Enforcer™, Arrow XT™, Velocity®, and Impel® chassis
• Single set of outriggers and one downrigger
• 115' ground ladders
• 5 Patents Pending: Ladder design, lightweight turntable, outrigger design, pedestal and torque box, overall configuration
