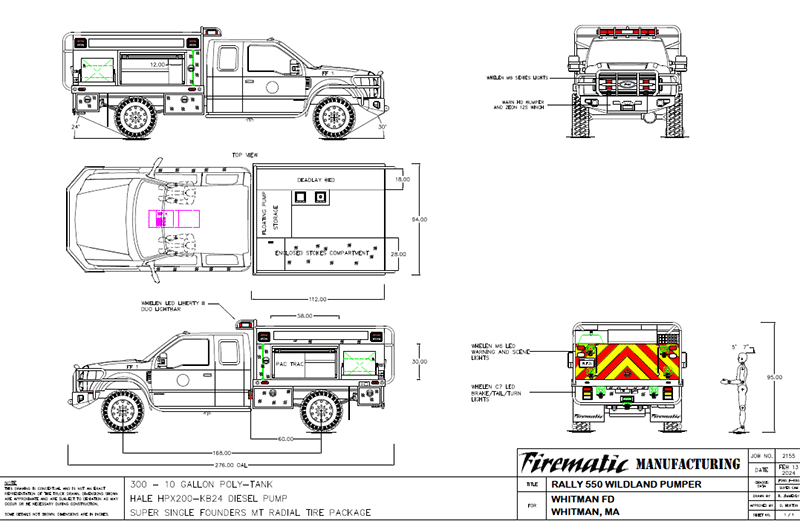

Specs:

• 2024 Ford F-550 Super Cab 4x4, 19,500 GVWR
• 6.7L Power Stroke Diesel, 330 HP, 10-Speed Automatic
• Founders M/T 305/70R19.5 Super Singles, 2.5" Lift
• Firematic All-Aluminum Flatbed Body with Roll Bar & Side Protection
• 300 Gallon Pro Poly Water Tank + 10 Gallon Integrated Foam Cell
• Hale HPX200 Pump, Kubota 24 HP Diesel Engine
• Warn Ascent HD Front Bumper with Zeon 12S Winch
• Rear Apron-Mounted Warn Zeon 12S Winch
• (2) Electric Hannay Booster Reels, 200' of 1" Hose Each
• Scotty 4171 Around-the-Pump Class A Foam System
• Roll-Up Upper Side Compartments, Transverse Slide-Out Toolboard, Enclosed & Heated

Pump Area

• Underbody Storage Compartments, Skid Plates, Nerf Bars & Side Steps
• Rear Hose Tray, Crosslay, Rear Step & 2" Receiver Hitch
• Whelen Liberty II LED Lightbar with Full Warning & Scene Lighting Package

Hampden B.R.A.T. Wildland Pumper Specs

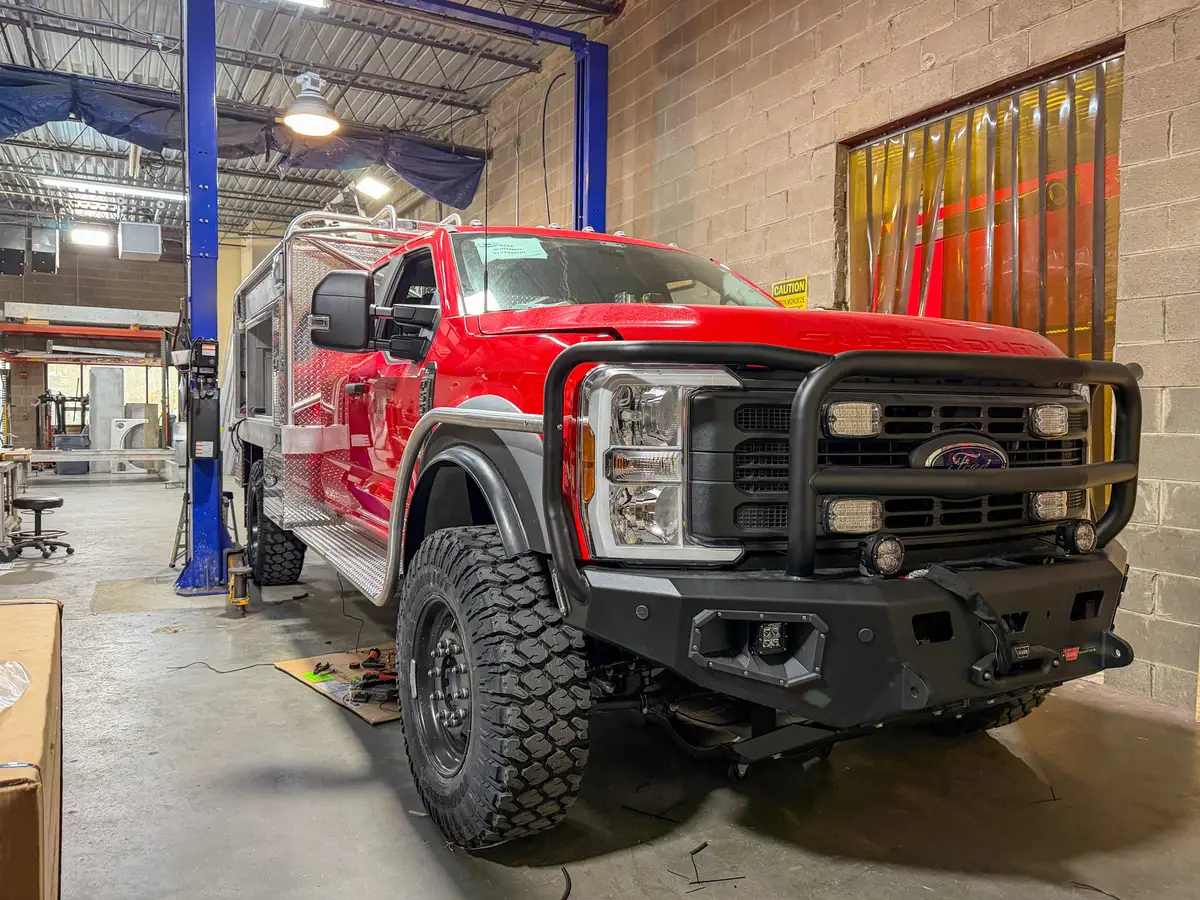

• 2024 Ford F-550 Crew Cab, 4x4
• 7.3L Gas V-8 Engine, 10-Speed Automatic
• Firematic Custom Aluminum Non-Walk-In Body, 12 ft. Length, 7 Compartments
• ROM Satin Finish Roll-Up Doors
• Super-Single Conversion with Founders MT 305/70R19.5 Tires
• Warn Ascent HD Front Bumper with 15,000 lb Winch
• Kussmaul Auto Eject and Chief Battery Charger
• Whelen Liberty II Lightbar and Full LED Warning/Scene Light Package
• Custom Aluminum Console with Whelen CenCom Core Controller
• Two H.O. Bostrom Rear Crew Seats
• White over Red Paint Scheme with Gold Leaf Lettering

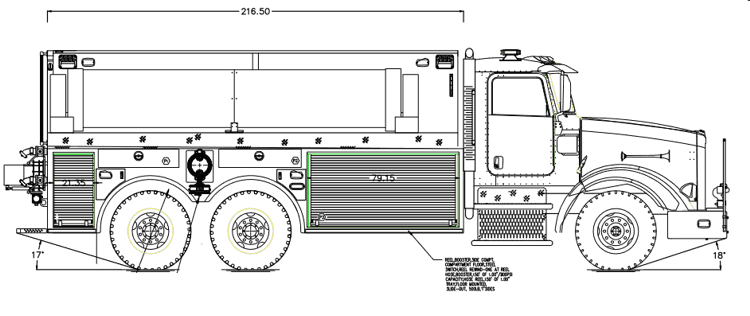

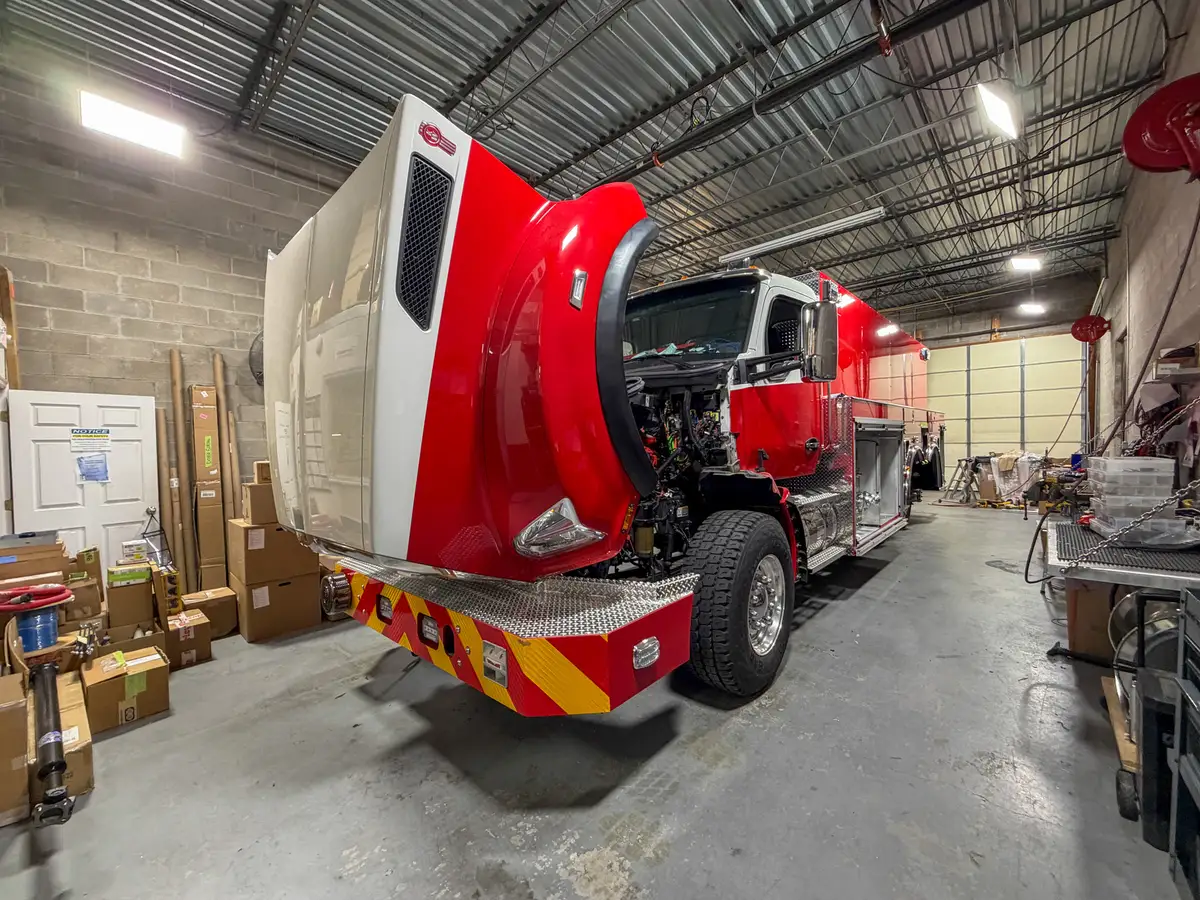

• BRAT Pumper Tanker
• 2024 Kenworth T880 Tandem Axle Chassis
• Cummins X15 Diesel Engine, 512HP
• Parabolic Taper Leaf Front Suspension
• Peterbilt Air Trac Rear Suspension
• Darley PTO 1000gpm Pump
• 3500gal Poly Water Tank
• Two Zico Quic-Lift Hydraulic Tank Racks
• Hannay SBEF30-23-24 Hose Reel, 150ft of 1"
• Whelen LED Lighting Package with Cencom Control System

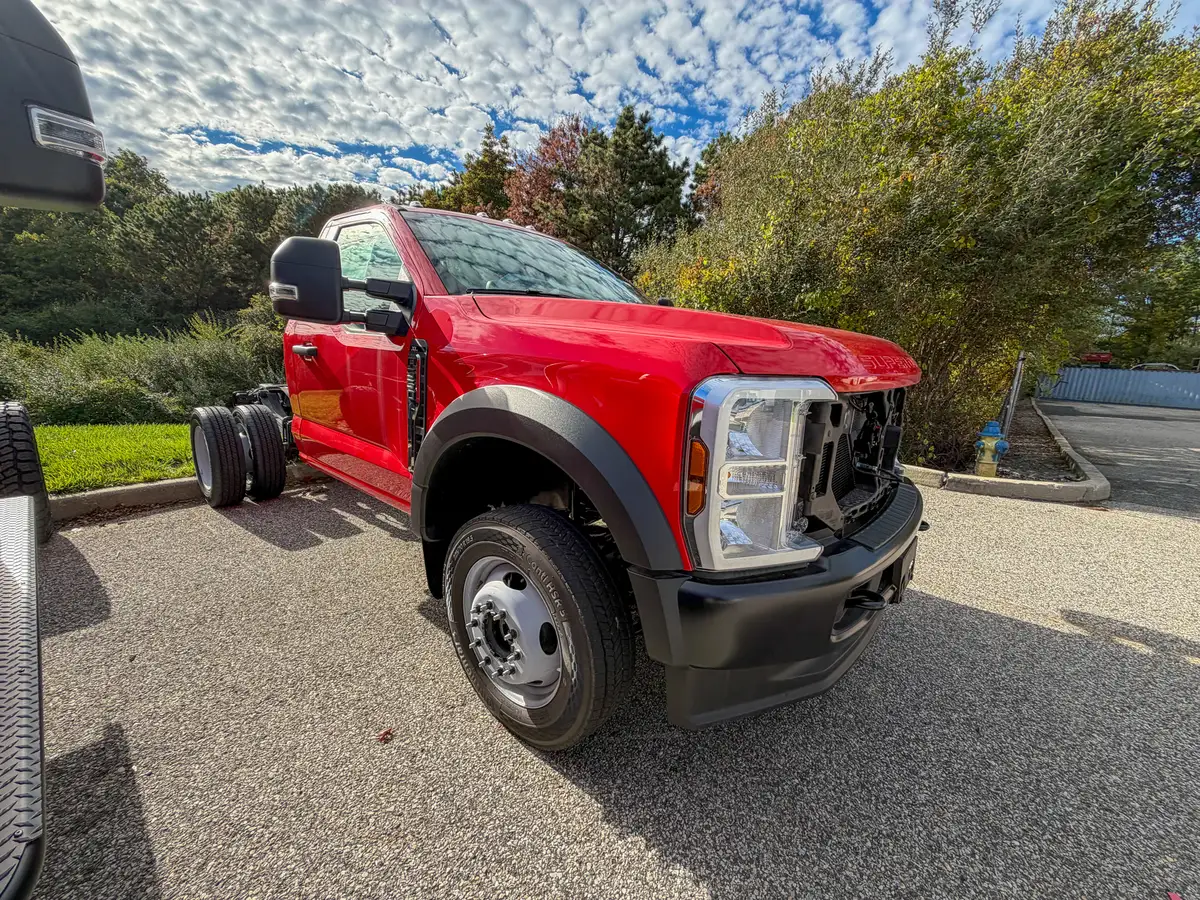

Hampden B.R.A.T. Wildland Pumper Specs

• 2023 Ford F-550 Regular Cab 4x4 145" WB
• Gas Engine 7.3L V-8 w/ 10-Speed Transmission
• Founders MT Super Single Wheels/Tires
• Firematic Heavy Duty Aluminum Flatbed Body w/ Roll-Up Compartments
• ProPoly 300-Gallon Tank
• Waterous CLV 500 GPM PTO Pump w/ Electric Waterous Primer
• Warn Ascent HD Steel Bumper w/ 15,000-lb Winch & D-Ring Shackles
• Stainless Steel Inlet & Discharge Manifold w/ Akron Brass Valves
• Hannay Aluminum Electric Hose Reel (200′ 1″ Booster Hose)
• FRC Pump Boss Max Electronic Pressure Governor
• Whelen LED Warning & Scene Light Package w/ Liberty II Lightbar
• FRC Radiant & Hi-Viz Guardian Jr Scene Lights
• Aluminum Tube Side Steps & Rear Fold-Down Steps
• Dual Underbody Aluminum Compartments w/ LED Lighting
• Kussmaul Auto-Eject Shoreline Charger
• Firematic Powder-Coated Console w/ Whelen CenCom Core
• Roll Bar Cab Protection Structure
• Reflective Red/Yellow Rear Chevron & Gold Leaf Lettering

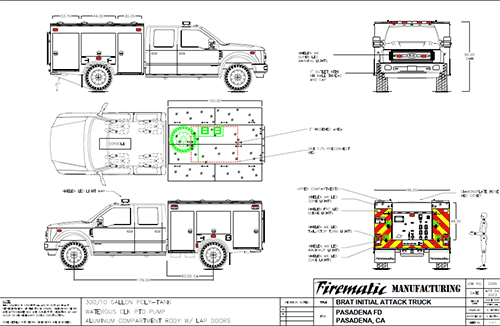

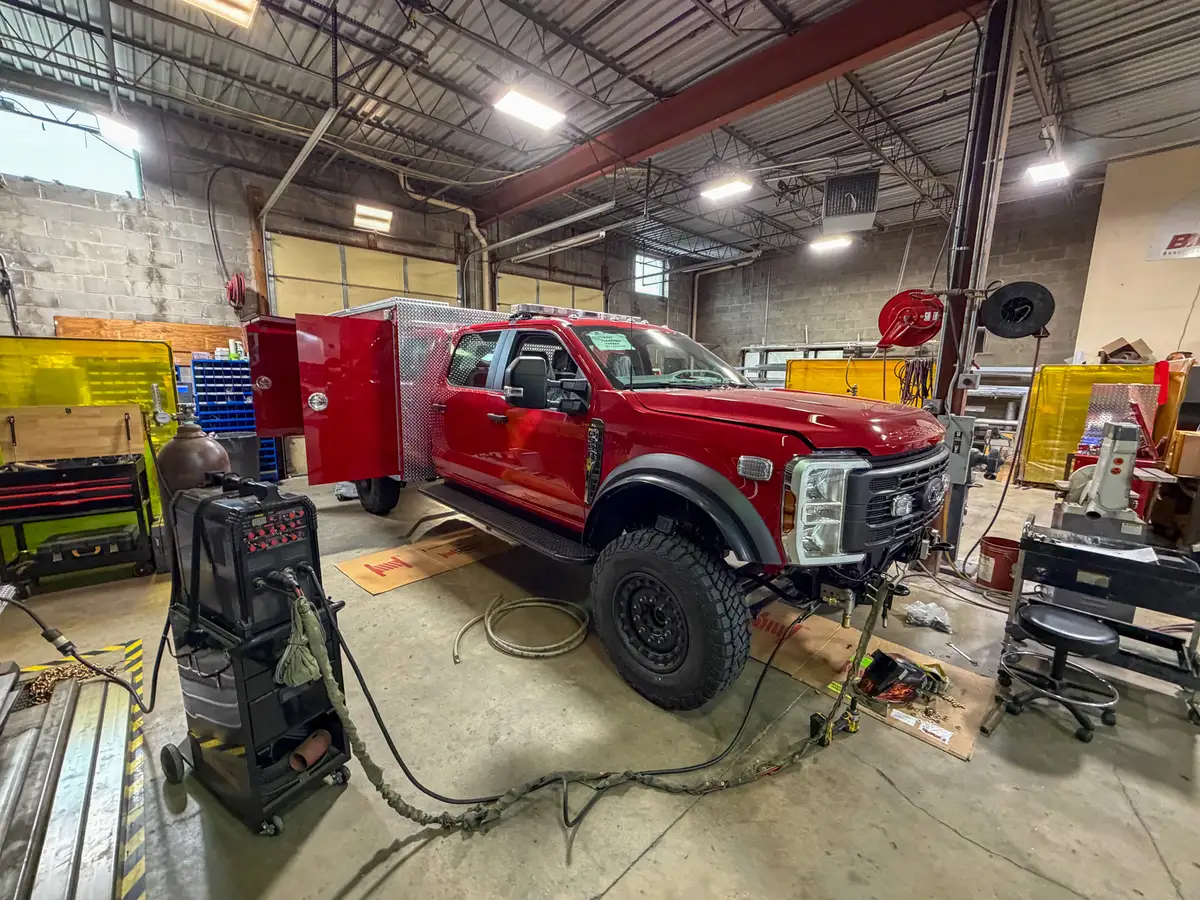

Pasadena Initial Attack Truck Specs

• 2023 Ford F-550 Crew Cab 4x4
• Powerstroke 330HP Diesel Engine
• Aluminum Body w/ Swing-Out Doors
• 2.5" Lift w/ Firematic Founders 305/70R19.5 Radial A/T Super Single Tire & Wheel Kit
• Waterous CLK 500 GPM PTO Pump w/ Muncie Hot-Shift PTO
• 300/10gal Water/Foam Poly Tank (Lifetime Warranty)
• Rear Pump Panel w/ Stainless Steel Manifold & FRC PumpBoss Max
• Fire Research TankVision Water Level & Foam Level Gauge
• 200' 1" Booster Reel (Hannay Electric Rewind)
• (1) 4.5" Main Intake w/ 2.5" Aux Intake
• (1) 1-1/2" Upper Preconnect, (1) 2-1/2" Rear Direct, (2) 1" Outlets (Front/Booster)
• Custom Hosebed w/ 800' 3" Hose Capacity
• Full Whelen LED Warning & Scene Lighting Package

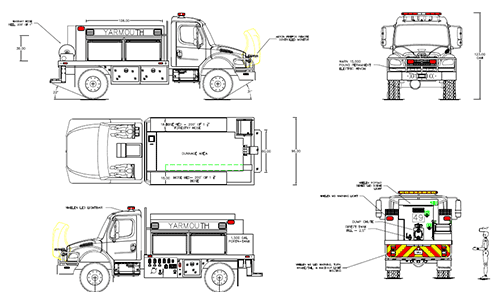

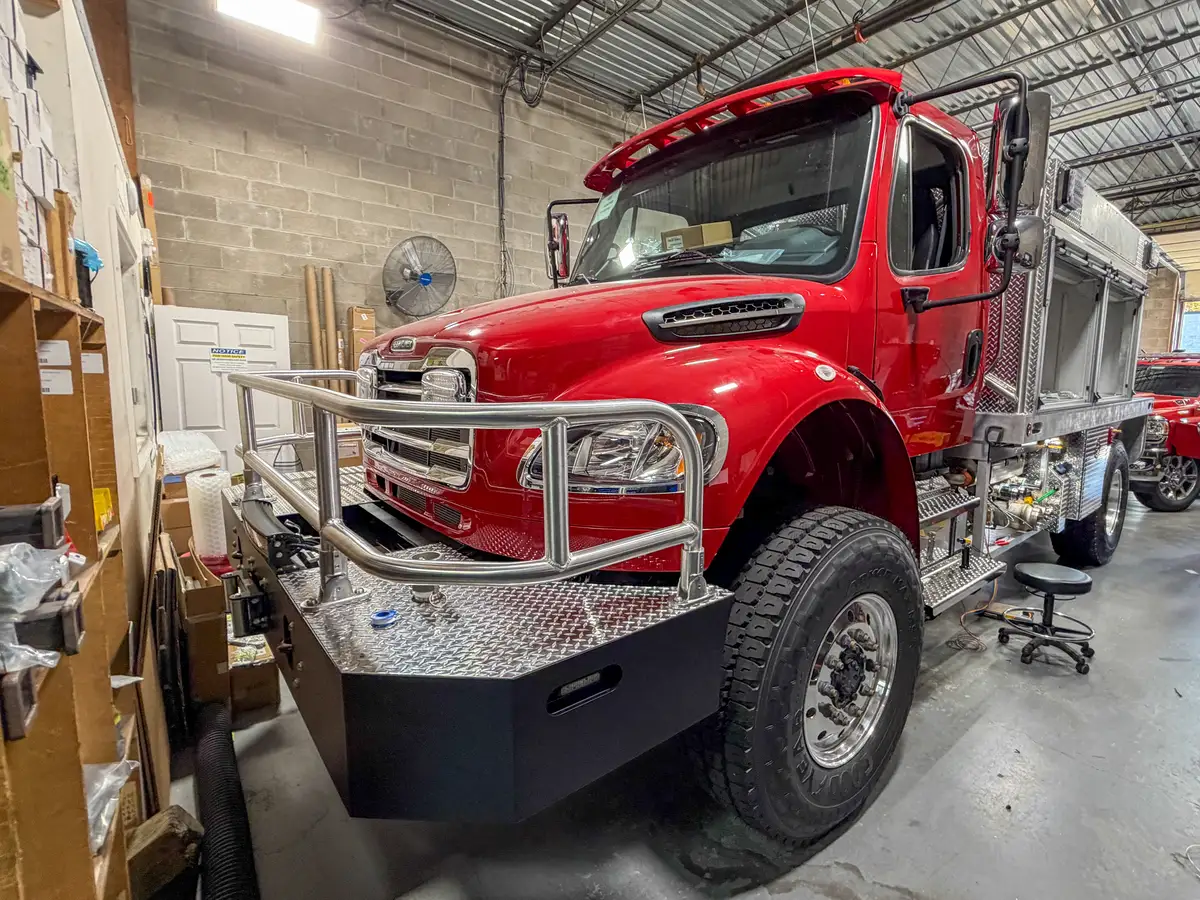

Rescue B.R.A.T.

• 2024 Freightliner M2 106 4x4
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• 1,250 Gallon Polypropylene Water Tank
• Firematic Heavy Duty Aluminum Flatbed Body
• Darley 750 GPM PSP PTO Pump
• Elkhart BrushHawk Remote-Controlled Front Monitor
• Fire Research Total InControl Pressure Governor
• Fire Research TankVision Water Level Gauges
• ROM Satin Roll-Up Doors on Four Compartments
• 3 Custom Diamond Plate Underbody Compartments
• Booster Reel with 200' Lightweight 1" Hose
• Rear 10" Pneumatic Dump Valve with Slide Chute
• 1,500 Gallon Folding Porta-Tank
• Custom Folding Aluminum Body with Full Brush Cage and Roll Bar
• Super Single Goodyear MSA 425/65R22.5 Tires on Alcoa Aluminum Wheels
• Warn 15,000 lb Front Winch with 12" Bumper Extension
• Whelen Liberty II Duo Lightbar with CenCom Core System
• LED Scene Lighting Package with Guardian Elite and Rigid Light Bars
• Whelen M-Series LED Warning and DOT Lighting
• Class IV Rear Hitch with Winch Plug and 7-Pin Trailer Connector
• Custom Aluminum Powder-Coated Console with Radios and Joystick Deck Gun Control

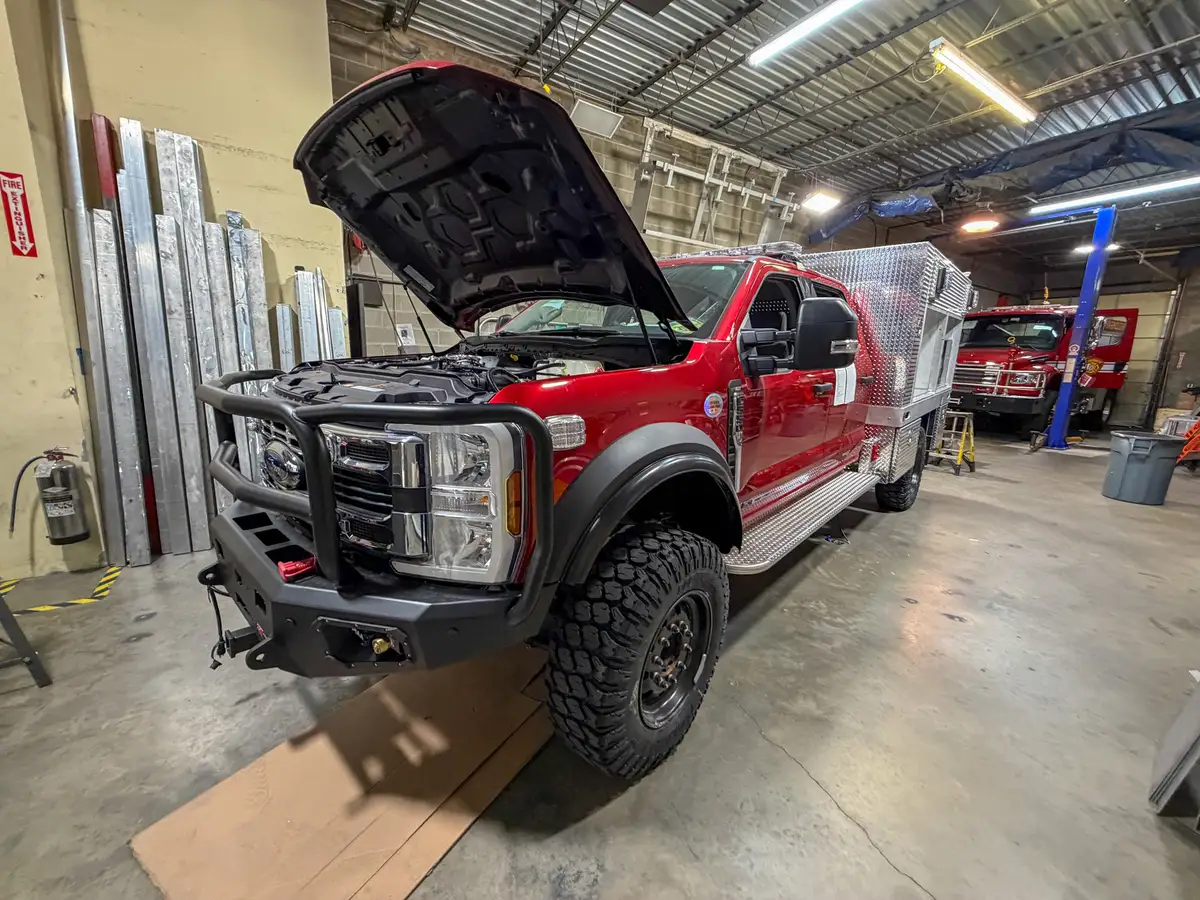

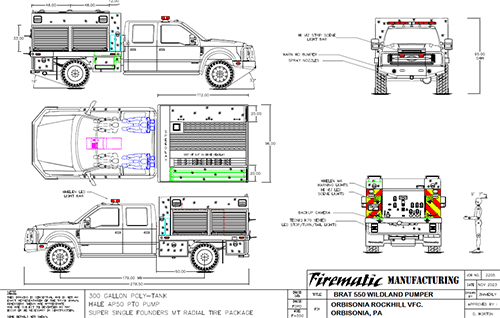

Orbisonia Rockhill VFC Wildland Pumper B.R.A.T.

• 2024 Ford F-550 XL Crew Cab 4x4, 60" CA, 19,500 GVWR
• Diesel 6.7L V-8, 330 HP, 10-Speed OD Transmission
• Dual 220A Alternators & 78AH Batteries
• Firematic Heavy Duty All-Aluminum Flat Bed Body w/ ROM Roll-Up Doors
• Pro Poly 300 Gallon Water Tank (Lifetime Warranty)
• Hale AP50 PTO Pump, 500 GPM w/ Hot-Shift Muncie PTO
• Founders MT Super Single Wheels w/ 305/70R19.5 Tires & 2.5" Suspension Lift
• Warn Ascent ¼" Steel Bumper & Grill Guard w/ Winch Receiver
• 4.5" NH Male Inlet & 3" Square SS Discharge Manifold w/ Akron Brass Valves
• Hannay Electric Booster Reel w/ Diamond Plate Cover
• Speedlays & Preconnects, Suction Hose Storage, Full Transverse Front Compartment
• Whelen Cencom Core Siren & LED Warning/Scene Light Package w/ FireTech Guardian LEDs
• Custom Aluminum NFPA-Compliant Side Steps & Rear Fold-Down Steps
• Class IV Rear Hitch w/ Safety Chain D-Rings & 7-Pin Trailer Plug
• SCBA Flip-Up Bostrom Tanker Crew Seats w/ Load & Lock Brackets
• Full Reflective Chevron Striping, EZ Gold Lettering & Graphics

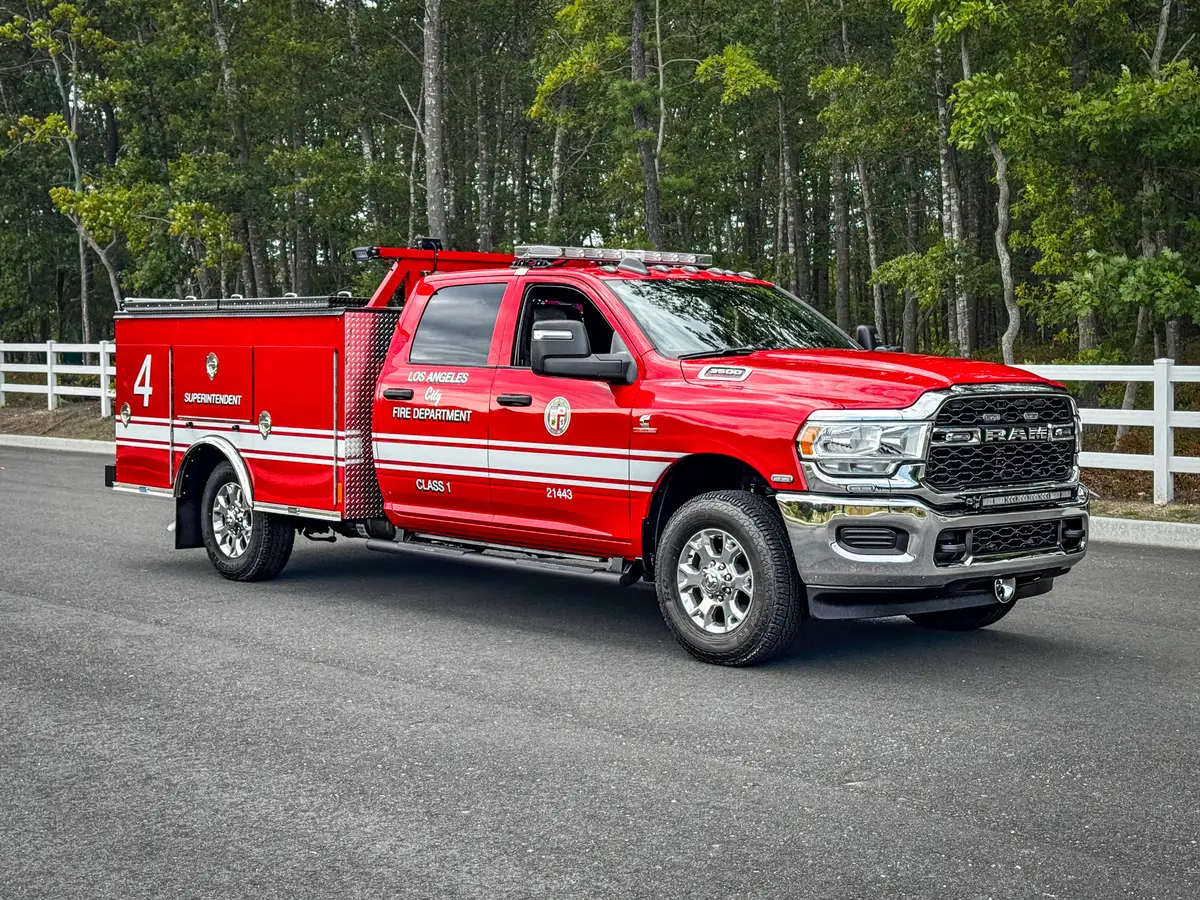

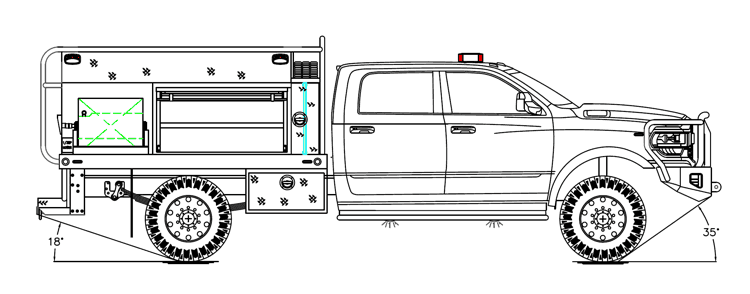

• 2024 Dodge 3500, 4 Door Crew Cab, 4x4 Drive
• Cummins Diesel Engine 6.7 L I6 360 HP
• Aisin 6-Speed Electric OD Transmission
• Aluminum body construction with swing out doors; 106.5" length, 82" width; Compartments with aluminum construction, rubber fenderettes
• Whelen Liberty Duo II LED light bar
• Whelen LED warning and scene lights
• TecNiq LED step lights
• Backup alarm
• Cencom Core siren system
• Warn Zeon 12,000 lb electric winch, steel wire rope, front bumper mount
• Reinforced headache rack
• Class V 2.5" receiver tube
• Tow eyes
• Three Piece Metal Tonneau Cover
• Radio antennas
• Sigtronics intercom system
• Pre-wiring for mobile data computer and Motorola radios
• 12V DC to 120V AC power inverter
• Heavy-duty front bumper
• Remote spotlight
• Onboard air compressor system

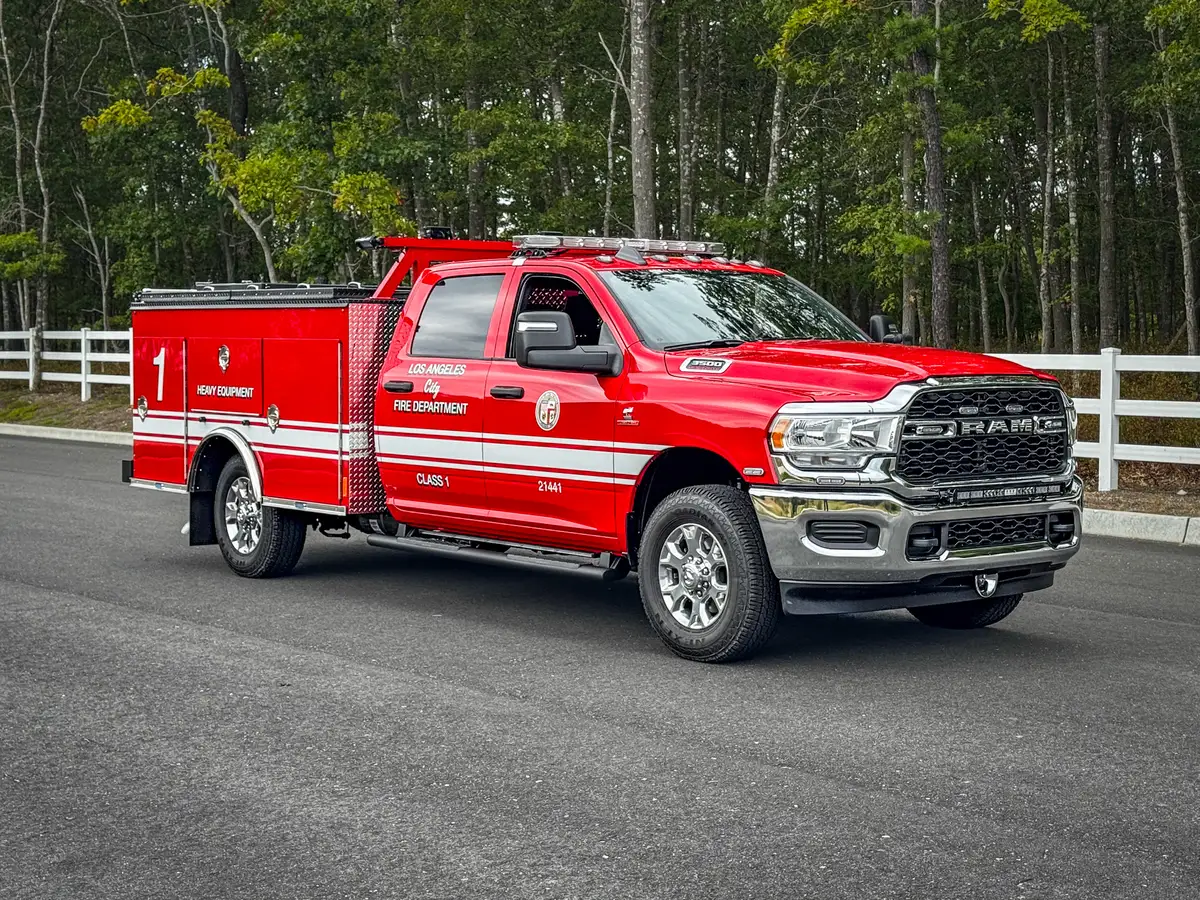

• 2024 Dodge 3500, 4 Door Crew Cab, 4x4 Drive
• Cummins Diesel Engine 6.7 L I6 360 HP
• Aisin 6-Speed Electric OD Transmission
• Aluminum body construction with swing out doors; 106.5" length, 82" width; Compartments with aluminum construction, rubber fenderettes
• Whelen Liberty Duo II LED light bar
• Whelen LED warning and scene lights
• TecNiq LED step lights
• Backup alarm
• Cencom Core siren system
• Warn Zeon 12,000 lb electric winch, steel wire rope, front bumper mount
• Reinforced headache rack
• Class V 2.5" receiver tube
• Tow eyes
• Custom Storage Box for Bed
• Radio antennas
• Sigtronics intercom system
• Pre-wiring for mobile data computer and Motorola radios
• 12V DC to 120V AC power inverter
• Heavy-duty front bumper
• Remote spotlight
• Onboard air compressor system

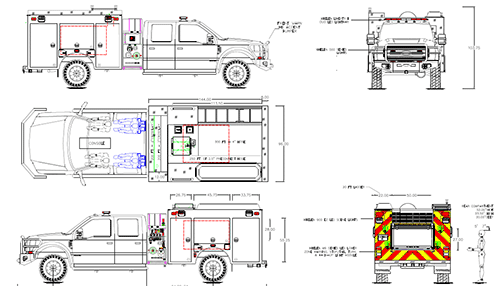

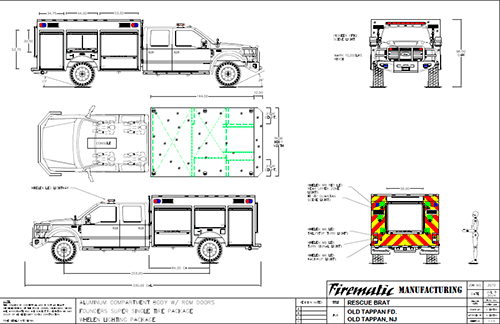

Rescue B.R.A.T.

• 2024 Ford F-550 4 Door 4x4
• 6.7L Powerstroke 330 HP Diesel Engine
• Firematic Aluminum Body with 7 Compartments
• ROM Roll-up Rear Door with Satin Finish
• Firematic Founders Super Single Tires with 2.5" Lift
• 300 Gallon Poly Water Tank + 10 Gallon Foam Cell
• Darley PSM1250 Midship Pump with Stainless Plumbing
• Firematic Custom Center Console
• Darley Auto-Control Pressure Governor
• Fire Research Tank Vision Water & Foam Gauges
• Two 6" Side Suctions + One 2.5" Left Aux Suction
• 2.5" Preconnect in Hose Bed + Two 2" Crosslays
• Booster Reel with 200 ft of 1" Foam Capable Hose
• FoamPro 1600 Class A Direct Injection System
• Whelen LED Warning & Scene Lighting with CenCom Core
• Rigid LED Front Scene Bar + Whelen 900 Scene Lights
• Warn Ascent HD Front Bumper with 15,000 lb Winch
• Class 4 Hitch + Skid Plates
• Aluminum Ladder, Suction Hose & Stokes Basket Storage
• Custom Painted Rapid Red with NFPA Chevron Striping
• Gold Leaf Lettering Package Included

• Firematic Demo 25' Wildland Unit
• 2023 Dodge 5500 Crew Cab 4x4, 360HP Cummins Diesel
• Founders MT 305/70R19.5 Super Singles, 2.5" Lift
• Firematic Aluminum Flatbed with Roll Bar & Protection Cage
• 300 Gallon Pro Poly Tank + 10 Gallon Foam Cell
• Waterous E511 Diesel Pump, Kubota 24HP Engine
• Warn Ascent HD Bumper with 16.5TI Winch
• (2) Electric Hannay Booster Reels, 200' 1" Hose Each
• Scotty Around-the-Pump Foam System
• Dual Roll-Up Diamondplate Compartments + Pullout Toolboard
• Crosslay Hosebed, Rear Step with 2" Receiver
• Heavy-Duty Skid Plates, Nerf Bars, Rear Handrails
• Whelen Liberty II LED Lightbar, Full Scene and Warning Package

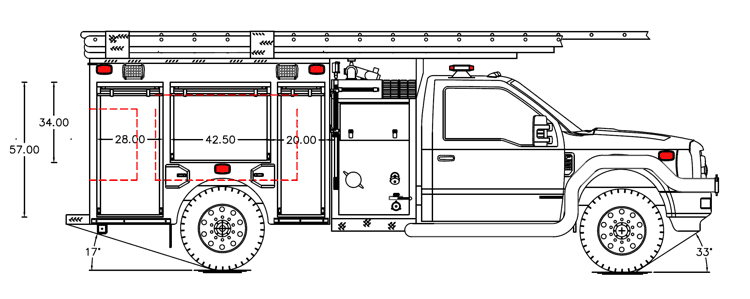

• Rally B.R.A.T. 1500
• 2023 Ford F-550 2 Door 4x4
• 6.7L Powerstroke 300 HP Diesel Engine
• Firematic Aluminum Body
• ROM Roll-up Doors with Satin Aluminum Finish
• Firematic Founders Super Single Tires with 2.5" Lift
• 300 Gallon ProPoly Water Tank
• Darley PSM1500 Split Shaft Pump
• Firematic Custom Pump House
• Fire Research PumpBoss Max Pressure Governor
• Fire Research Water Level Gauges
• Elkhart Manual and Electric Valves
• 5" Front Suction with Stainless Steel Plumbing
• 3" Deck Gun Discharge & 3" Rear Discharge
• 1000' of 5" LDH + 400' of 2.5" Hose
• Two 1.75" Preconnected Crosslays
• One 2.5" Preconnect in the Hose Bed
• TFT Hurricane 1250 GPM Electric Deck Gun
• Whelen LED Lighting Package with Cencom Core Control
• FRC Scene Lighting with Telescoping LED Lights
• Aluminum Ladder Storage for 40' and 20' Ladders
• Folding Rear Step with NFPA Slip-Resistant Diamondplate

• Freightliner M2-106 Chassis Water Tender
• 4 Door, 4x4 Cab/Chassis
• Cummins 360 hp Diesel Engine
• Allison 3000 EVS Transmission
• 1,500 Gallon Polypropylene Water Tank
• Darley 1,000 GPM PTO Pump
• Waterous E-511 225 GPM Aux Diesel Pump
• Fire Research Tankvision Water Level Gauges
• 3 Electrically Rewinding Booster Reels
• Task Force Tips Remote-Controlled Front Monitor
• Warn VR EVO 10-S Portable Winch
• LED Scene Lighting and Underbody Lighting
• Whelen M-Series LED Warning Lights
• 1.5" Aluminum Full Brush Cage and Roll Bar
